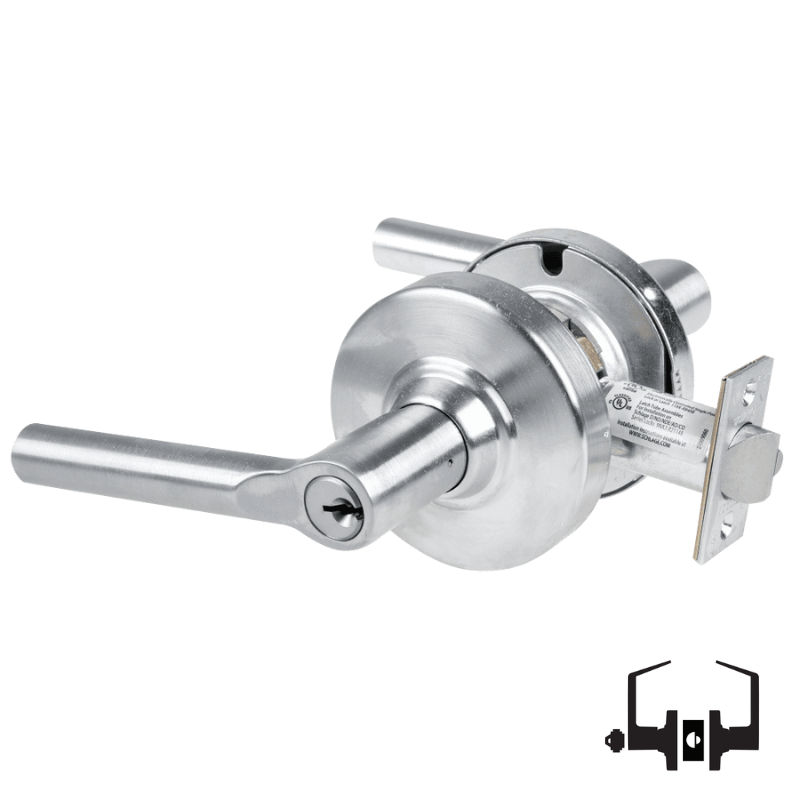

Schlage ALX70P6-BRW Classroom Cylindrical Lock, Broadway Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX70P6BRW626
Schlage ALX70P6-BRW-626
Schlage ALX70P6-BRW-626
Schlage ALX70
SchlageALX-BRW
Schlage ALX70P6-BRW-605
Schlage ALX70P6-BRW-606
Schlage ALX70P6-BRW-612
Schlage ALX70P6-BRW-613
Schlage ALX70P6-BRW-619
Schlage ALX70P6-BRW-622
Schlage ALX70P6-BRW-625
Schlage ALX70P6-BRW-643E
All SCHLAGE Products

Schlage ALX70P6-BRW Classroom Cylindrical Lock, Broadway Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX70P6BRW626
  • ✓
    In Stock
    In Stock
Your Price
$443.00 /ea
Finish: US26D-626 Satin Chrome

Schlage ALX70-P6-BRW Classroom Cylindrical Lock, Field Selectable Vandlgard, Broadway Lever, 6 Pin Schlage C Keyway, Keyed Different, [2] Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

Schlage's ALX70P6-BRW classroom cylindrical lock delivers reliable security for educational environments with its Grade 2 construction and field-selectable Vandlgard protection. The Broadway lever design pairs with a 6-pin Schlage "C" keyway for keyed-different operation, accommodating standard 2-3/4 inch backsets and 4-7/8 inch strikes. Non-handed configuration ensures flexible installation across various door types. Includes two keys for immediate deployment.

ALX70 Single Cylinder Deadbolt Function, Classroom lock

  • Key cylinder outside; plain lever inside; deadlatch
  • Key in outside lever locks or unlocks outside lever
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 70-Classroom Lock
Function Family Classroom
ANSI Function F84 - Classroom
Lever/Knob Design BRW Broadway Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/8 In. - 1-3/4 In.
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4 In.
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Combination
Product Type Cylindrical Lock
