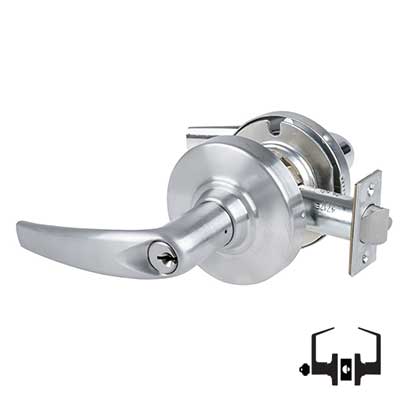

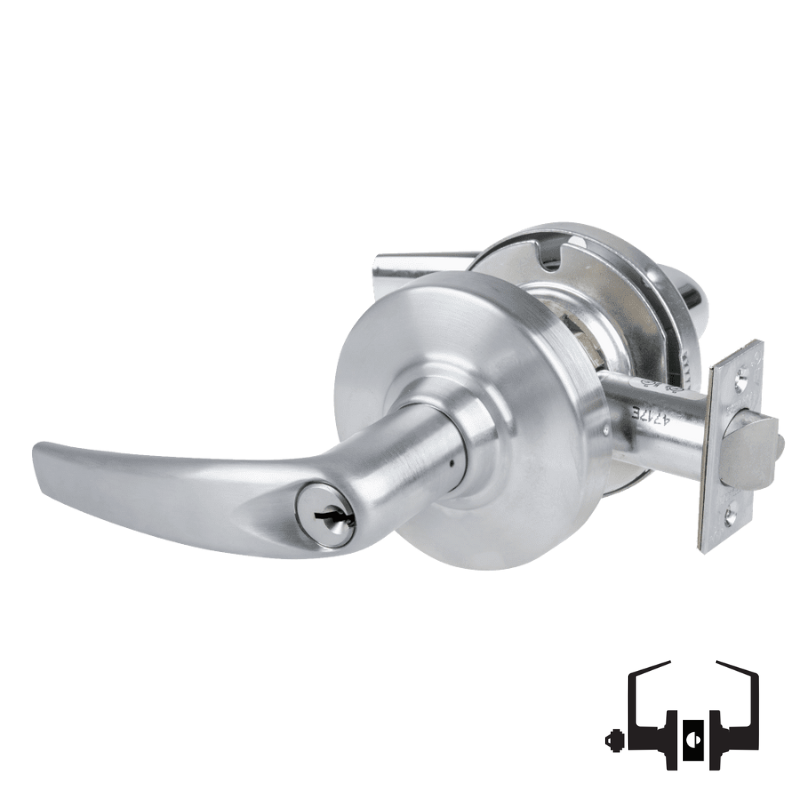

Schlage ALX80P6-ATH Storeroom Cylindrical Lock, Athens Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX80P6ATH626
  • ✓
    In Stock
    In Stock
Your Price
$442.00 /ea
Finish: US26D-626 Satin Chrome

Schlage ALX80-P6-ATH Storeroom Cylindrical Lock, Field Selectable Vandlgard, Athens Lever, 6 Pin Schlage C Keyway, Keyed Different, [2] Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

The Schlage ALX80P6-ATH is a Grade 2 storeroom cylindrical lock engineered for reliable access control in commercial and institutional settings. Features the elegant Athens lever design paired with a 6-pin Schlage C keyway for enhanced security. This non-handed lock accommodates both left and right-hand doors, offering installation flexibility. Includes two keys keyed different for convenient access management. With a 2-3/4 inch backset and 4-7/8 inch strike, it integrates seamlessly into standard door frames. Field-selectable Vandlgard protection provides additional resistance against tampering, making it ideal for storerooms, utility areas, and restricted-access spaces requiring dependable performance.

ALX80 Single Cylinder Deadbolt Function, Storeroom lock

  • Key cylinder outside; plain lever inside; deadlatch
  • Outside lever always fixed
  • Key can retract the latch
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 80 Storeroom Lock
Function Family Storeroom
ANSI Function F86 - Storeroom
Lever/Knob Design ATH Athens Lever
Lever/Knob Design Family Curved Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock


Product Cut Sheet
