All SCHLAGE Products

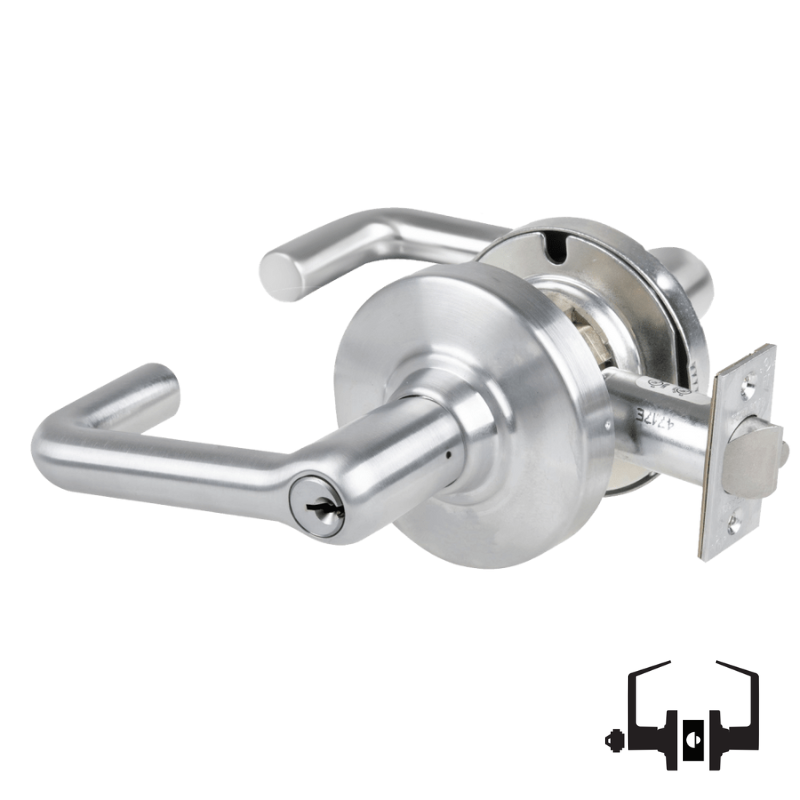

Schlage ALX80P6-TLR Storeroom Cylindrical Lock, Tubular Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX80P6TLR626
Schlage ALX80-P6-TLR-626
Schlage ALX80-P6-TLR-626
SchlageALX80
Schlage ALX80P6-TLR Storeroom Cylindrical Lock, Tubular Lever, 6 Pin Schlage "C" Keyway, Keyed Different
Schlage ALX80-P6-TLR-605
Schlage ALX80-P6-TLR-606
Schlage ALX80-P6-TLR-612
Schlage ALX80-P6-TLR-613
Schlage ALX80-P6-TLR-619
Schlage ALX80-P6-TLR-622
Schlage ALX80-P6-TLR-625
Schlage ALX80-P6-TLR-643E
All SCHLAGE Products

Schlage ALX80P6-TLR Storeroom Cylindrical Lock, Tubular Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX80P6TLR626
  • ✓
    In Stock
    In Stock
Your Price
$442.00 /ea
Finish: US26D-626 Satin Chrome

Schlage ALX80-P6-TLR Storeroom Cylindrical Lock, Field Selectable Vandlgard, Tubular Lever, 6 Pin Schlage C Keyway, Keyed Different, [2] Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

The Schlage ALX80P6-TLR is a Grade 2 storeroom cylindrical lock engineered for reliable security in commercial and institutional settings. Features include a tubular lever design, 6-pin Schlage C keyway with keyed different operation, and field-selectable Vandlgard protection to deter tampering. This non-handed lock accommodates a 2-3/4 inch backset with a 4-7/8 inch strike, offering flexible installation across various door configurations. Includes two keys for immediate access control. Ideal for storage areas, utility rooms, and restricted-access spaces requiring dependable mechanical security.

ALX80 Single Cylinder Deadbolt Function, Storeroom lock

  • Key cylinder outside; plain lever inside; deadlatch
  • Outside lever always fixed
  • Key can retract the latch
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 80 Storeroom Lock
Function Family Storeroom
ANSI Function F86 - Storeroom
Lever/Knob Design TLR Tubular Lever
Lever/Knob Design Family Curved Return Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock


Product Cut Sheet
