Technical Specs
| Function |
250 - Single Cylinder Deadlatch
|
| ANSI Function |
E0122 - Single Cylinder Deadlatch
|
| Cylinder Type |
Conventional 6-Pin Cylinder
|
| Door Thickness |
1-1/2" - 1-3/4" |
| Std. Latch Number |
12-100 |
| Std. Latch Type |
Dead Latch (Guarded) |
| Std. Latch Backset Dim |
2-3/8" |
| Lock Face Size |
2-1/4" x 1-1/8" |
| Bolt Projection |
1/2" Latch |
| Std. Strike Number |
10-001 |
| Std. Strike Type |
T-Square Corner |
| Std. Strike Height |
2-3/4" |
| Std. Strike Width |
1-1/8" |
| Dust Box |
Plastic |
| Product Type |
Deadbolts |
Product Specs
| Manufacturer |
Schlage |
| Grade |
Grade 2 |
| Installation |
Commercial |
| Unit of Measure |
Each |
| Limited Warranty |
10 Years |

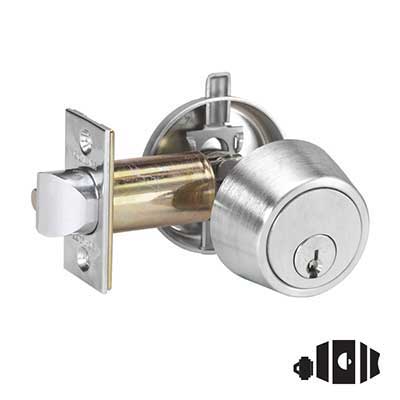

Schlage B250P6 Single Cylinder Deadlatch, Conventional 6-Pin Cylinder, Keyed Random, [2] Keys, 2-3/8" Backset, 2 3/4 T Strike, Grade 2
Schlage B250 Series Overview
Commercial Grade Deadlatches
Ideally suited for pool, apartment and condominium gates, utility panels and pipe chases, the Schlage B250 Series is tough, reliable and has a proven design that has been the industry standard for decades.
