All SCHLAGE Products
Technical Specs
| Function | 581-Door Bolt w Trim |
| ANSI Function |
E01112 - Door Bolt |
| Door Thickness | 1-3/8 In. - 1-7/8 In. |
| Std. Latch Number | 12-287 |
| Std. Latch Type | Deadbolt |
| Std. Latch Backset Dim | Adjustable 2-3/8 In. and 2-3/4 In. |
| Lock Face Size | 2-1/4 In. x 1 In. |
| Bolt Projection | 1 In. |
| Std. Strike Number | 10-094 |
| Std. Strike Type | Flat |
| Std. Strike Height | 2-3/4 In. |
| Std. Strike Width | 1-1/8 In. |
| Dust Box | None |
| Product Type | Deadbolts |
Product Specs
| Manufacturer | Schlage |
| Grade | Grade 2 |
| Installation | Commercial |
| Unit of Measure | Each |
| Fire Rated | Yes |
A revolutionary new deadbolt that delivers higher security and tougher performance.
Designed by locksmiths for locksmiths, the B500 Series deadbolt can be fitted with any Schlage cylinder, fits virtually every door you service, enhances lock strength on the jamb side of the door and will change forever the way you look at deadbolts.
- Adjustable backset with lock-in-place helix design
- Integrated anti-pry shield protects latch
- Thicker metal security strike back-up on jamb side
- Security strike on jamb has third screw for stronger, deeper anchoring
- Added space inside strike box for true deadlatch
- Seamless steel latch construction along the entire length of the bolt housing
- 10% larger diameter deadbolt
- Zinc bolt with spinning hardened steel pin inside
- Tapered front housing that can’t be unscrewed
- Integrated trim piece for fewer pieces out of the box
- Large, easy-to-use, ADA compliant thumbturn
- Meets UL 10B andd UL 10C requirements

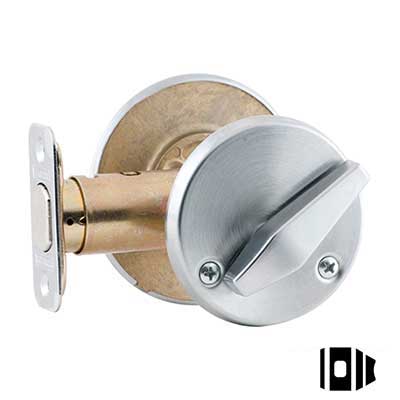

Schlage B581 Door Bolt, Inside Turn x Blank Plate, Adjustable 2-3/8" and 2-3/4" Backset, Grade 2
Schlage B500 Series Overview
Commercial Grade Deadbolts
