Description

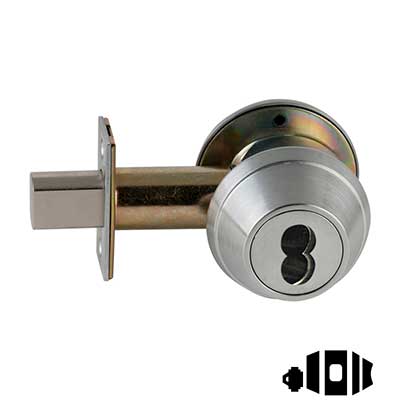

Schlage B660B Single Cylinder Deadbolt, 2-3/4" Backset, Accepts SFIC, Less Core, Grade 1
Schlage B600 Series Overview
Commercial Grade Deadbolts
The B600 Series are Schlage’s highest grade deadbolt locks. Choose the 600 for Grade 1 security in high-traffic commercial applications. A variety of functions and finishes makes the B600Series a versatile choice for added security no matter where you use it.
- 1" (25 mm) throw, high-strength steel alloy deadbolt with hardened steel roller resists sawing and kick-in attacks
- Precision-built solid brass 6-pin cylinders with phosphor bronze springs and nickel silver pins ensure long life and smooth operation
- Tough nickel silver keys for smooth, long-lasting operation
- Exclusive concealed wood frame reinforcer protects wood jamb against kick-in attacks
- Free-spinning solid cylinder collar resists wrenching and prying
- Large inside Americans with Disabilities Act (ADA) compliant thumbturn makes it easy to throw and retract deadbolt
- Metal shield protects bolt from ice-pick attack through the door
- Hardened steel ball-bearings protect mounting bolts from drill attack
- Meets UL10B and UL10C requirements
Product Specs
Manufacturer | Schlage |
Grade | Grade 1 |
Installation | Commercial |
Unit of Measure | Each |
Technical Specs
Function | 660-Single Cylinder Deadbolt Lock |
ANSI Function |
E0151 - Single Cylinder Deadbolt |
Cylinder Type |
SFIC Prep Less Core |
Door Thickness | 1-3/4" - 2" |
Std. Latch Number | 12-631 |
Std. Latch Type | Deadbolt |
Std. Latch Backset Dim | 2-3/4 In. |
Lock Face Size | 2-1/4 In. x 1-1/8 In. |
Bolt Projection | 1 In. |
Std. Strike Number | 10-094 |
Std. Strike Type | Flat |
Std. Strike Height | 2-3/4 In. |
Std. Strike Width | 1-1/8 In. |
Dust Box | None |
Product Type | Deadbolts |
