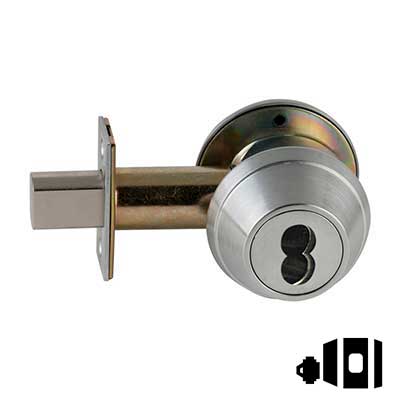

Schlage B661J One-Way Deadbolt, Cylinder Outside x Blank Plate Inside, 2-3/4" Backset, Accepts Schlage Large Format FSIC, Less Core

  • SKU: B661J626

Schlage B661J One-Way Deadbolt, Cylinder Outside x Blank Plate Inside, 2-3/4" Backset, Accepts Schlage Large Format FSIC, Less Core

  • SKU: B661J626
Sale price$301.00/ea
In Stock
In Stock
Schlage Finish: 626 - Satin Chromium Plated

Schlage B661J One-Way Deadbolt, Cylinder Outside x Blank Plate Inside, 2-3/4" Backset, Accepts Schlage Large Format FSIC, Less Core

Schlage B600 Series Overview
Commercial Grade Deadbolts

Schlage B661P Function

The B600 Series are Schlage’s highest grade deadbolt locks. Choose the 600 for Grade 1 security in high-traffic commercial applications. A variety of functions and finishes makes the B600Series a versatile choice for added security no matter where you use it.

  • 1" (25 mm) throw, high-strength steel alloy deadbolt with hardened steel roller resists sawing and kick-in attacks
  • Precision-built solid brass 6-pin cylinders with phosphor bronze springs and nickel silver pins ensure long life and smooth operation
  • Tough nickel silver keys for smooth, long-lasting operation
  • Exclusive concealed wood frame reinforcer protects wood jamb against kick-in attacks
  • Free-spinning solid cylinder collar resists wrenching and prying
  • Large inside Americans with Disabilities Act (ADA) compliant thumbturn makes it easy to throw and retract deadbolt
  • Metal shield protects bolt from ice-pick attack through the door
  • Hardened steel ball-bearings protect mounting bolts from drill attack
  • Meets UL10B and UL10C requirements


Manufacturer Schlage
Grade Grade 1
Installation Commercial
Unit of Measure Each
Function 661-One Way Deadbolt Lock
ANSI Function E0161 - One Way Deadbolt
Cylinder Type Schlage FSIC Less Core
Door Thickness 1-5/8" - 2"
Std. Latch Number 12-631
Std. Latch Type Deadbolt
Std. Latch Backset Dim 2-3/4 In.
Lock Face Size 2-1/4 In. x 1-1/8 In.
Bolt Projection 1 In.
Std. Strike Number 10-094
Std. Strike Type Flat
Std. Strike Height 2-3/4 In.
Std. Strike Width 1-1/8 In.
Dust Box None
Product Type Deadbolts
