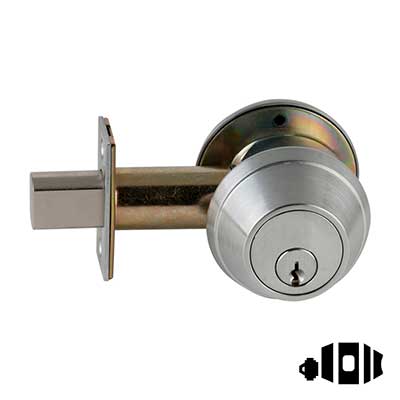

Schlage B663P6 Classroom Deadbolt, 2-3/4" Backset, Conventional 6 Pin Cylinder, Keyed Random, [2] Keys, Grade 1

  • SKU: B663P6626

Schlage B663P6 Classroom Deadbolt, 2-3/4" Backset, Conventional 6 Pin Cylinder, Keyed Random, [2] Keys, Grade 1

  • SKU: B663P6626
Sale price$386.00/ea
In Stock
In Stock
Schlage Finish: 626 - Satin Chromium Plated

Schlage B663P6 Classroom Deadbolt, 2-3/4" Backset, Conventional 6 Pin Cylinder, Keyed Random, [2] Keys, Grade 1

Schlage B600 Series Overview
Commercial Grade Deadbolts

Schlage B663P function

The B600 Series are Schlage’s highest grade deadbolt locks. Choose the 600 for Grade 1 security in high-traffic commercial applications. A variety of functions and finishes makes the B600Series a versatile choice for added security no matter where you use it.

  • 1" (25 mm) throw, high-strength steel alloy deadbolt with hardened steel roller resists sawing and kick-in attacks
  • Precision-built solid brass 6-pin cylinders with phosphor bronze springs and nickel silver pins ensure long life and smooth operation
  • Tough nickel silver keys for smooth, long-lasting operation
  • Exclusive concealed wood frame reinforcer protects wood jamb against kick-in attacks
  • Free-spinning solid cylinder collar resists wrenching and prying
  • Large inside Americans with Disabilities Act (ADA) compliant thumbturn makes it easy to throw and retract deadbolt
  • Metal shield protects bolt from ice-pick attack through the door
  • Hardened steel ball-bearings protect mounting bolts from drill attack
  • Meets UL10B and UL10C requirements


Manufacturer Schlage
Grade Grade 1
Installation Commercial
Unit of Measure Each
Function 663-Classroom Deadbolt Lock
ANSI Function E0171 - Classroom Deadbolt
Cylinder Type Conventional Cylinder
Door Thickness 1-5/8" - 2"
Std. Latch Number 12-631
Std. Latch Type Deadbolt
Std. Latch Backset Dim 2-3/4 In.
Lock Face Size 2-1/4 In. x 1-1/8 In.
Bolt Projection 1 In.
Std. Strike Number 10-094
Std. Strike Type Flat
Std. Strike Height 2-3/4 In.
Std. Strike Width 1-1/8 In.
Dust Box None
Product Type Deadbolts
