Technical Specs
| Function | HL6 Passage |
| Door Thickness | 1 3/4 In. |
| Std. Latch Number | 800110 |
| Std. Latch Type | Spring Latch (Unguarded) |
| Std. Latch Backset Dim | 5 In. |
| Lock Face Size | 2 1/4 In. x 1 1/8 In. |
| Bolt Projection | 1/2 In. |
| Std. Strike Number | 890023 |
| Std. Strike Type | T-Square Corner |
| Std. Strike Height | 2 3/4 In. |
| Std. Strike Width | 1 1/8 In. |
| Dust Box | None |
| Product Type | Hospital Push/Pull Latch |
Product Specs
| Manufacturer | Schlage |
| SKU | HL6-5 |
| Installation | Commercial |
| Unit of Measure | Each |
| Finish | 626 - Satin Chrome |

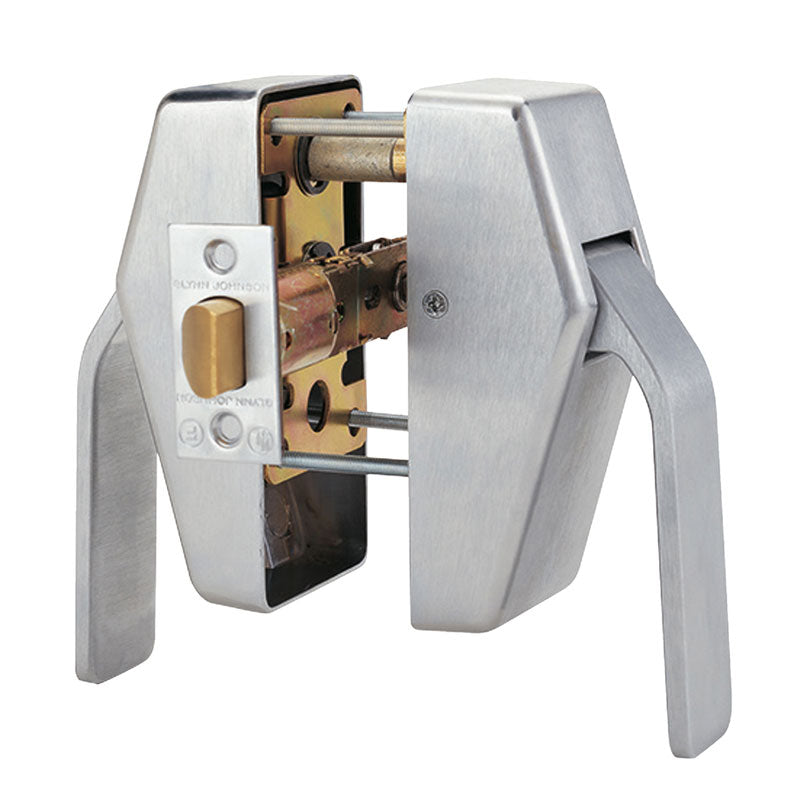

The Schlage HL6-5-626 Hospital Push/Pull has a Tubular Latch, is Passage Function, comes with a 5 Inch Backset, a T-Square Corner Strike, a Spring Latch (Unguarded), and comes in Satin Chrome Finish.
HL Series Hospital Latches
Quiet hospital push/pull hardware.
The HL Series includes a full line of push/pull hardware ideal for healthcare and other institutional applications where ease of operation is needed – even when hands are not free. Delivering both superior quality and exceptional performance, the HL Series offers a wide variety of popular finishes and configurations providing the flexibility needed to meet the most demanding door control applications.
Hospitals and other healthcare environments have special requirements for noise reduction to help patients heal faster and staff perform more accurately and efficiently. There are many sources of noise, but choosing quiet door hardware can help reduce excess noise and create quieter environments. The newly redesigned HL Series quiet hospital push/pull hardware offers a proven 50% quieter paddle operation than our previous product, providing healthcare organizations with a reliable solution for noise reduction initiatives.
- Dampened paddle action – depression and snap back – reduces noise associated with hardware operation
- Proven 50% quieter paddle operation – both in the pull and push direction – than our previous solution
- It comes standard on all HL Series hardware
Applications
Anywhere operational noise is disruptive:
- Healthcare areas where patients are sleeping and healing
- Workspaces where concentration is important
- Busy traffic areas such as hallways
- Chapels or auditoriums where noise can be disturbing
- Office or administrative areas
