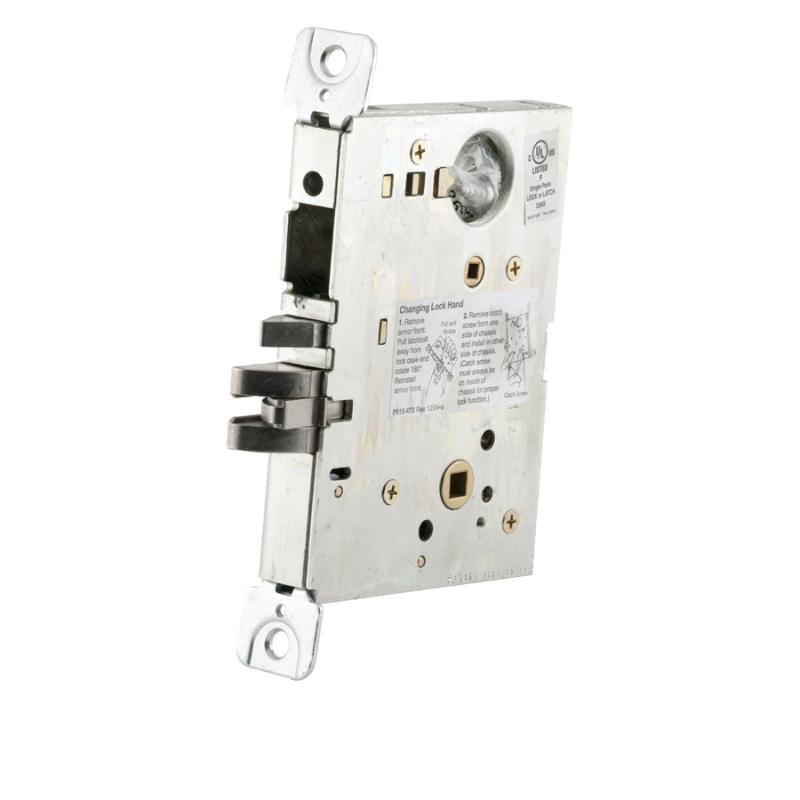

Schlage L9050LB-RH-134 Office Mortise Lock, Lock Body Only, Grade 1, Right Hand, Field Reversible

The Schlage L9050LB-RH-134 is a Grade 1 office mortise lock body from the dependable L9000 Series, engineered for high-traffic commercial and institutional openings. Supplied as a lock body only (no trim), this right-hand unit is field reversible, allowing installers to adapt handing on site without additional parts. Built with a heavy-duty steel case and precision components, it delivers the durability and smooth operation expected in schools, offices, healthcare facilities, and other demanding environments. The L9050 office function provides flexible access control for spaces that need both secured and passage capability throughout the day, backed by Schlage's reputation for long-term reliability.

Features

• Grade 1 mortise lock body for maximum durability in commercial applications.
• Office function (L9050) suited for private offices and controlled-access rooms.
• Field reversible design simplifies handing adjustments during installation.
• Supplied as a lock body only, letting you pair it with the trim and finish of your choice.
• Right-hand configuration as delivered from the factory.
• Heavy-duty steel case built to withstand high-frequency use.

Functional Details

The L9050 office function allows the outside lever to be locked or unlocked using a key or thumbturn, giving occupants control over room access while maintaining free egress from the inside at all times.

• Latchbolt operated by lever from either side except when outside lever is locked by key outside or by thumbturn inside.
• Auxiliary deadlatch prevents latchbolt from being forced back when door is closed.
• Inside lever is always free for immediate egress.
