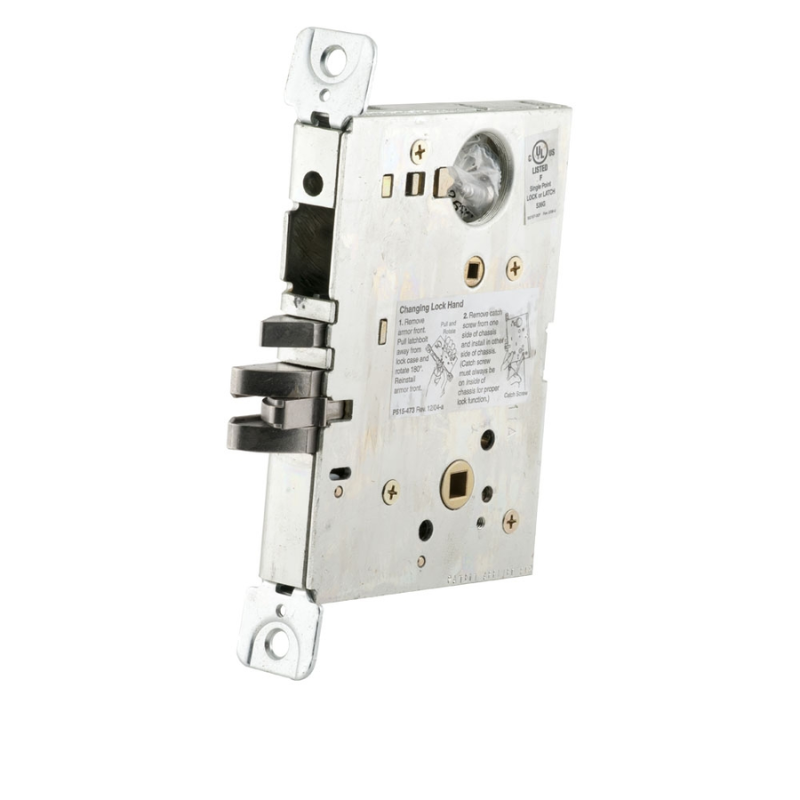

Schlage L9056LB-RH-134 Office Mortise Lock with Simultaneous Retraction, Lock Body Only, Grade 1, Right Hand, Field Reversible

The Schlage L9056LB-RH-134 is a Grade 1 office mortise lock body engineered for high-traffic commercial openings where reliable dual-latch control is essential. As part of Schlage's rugged L9000 series, this lock features simultaneous retraction, allowing both the latchbolt and deadbolt to withdraw together with a single motion for smooth, dependable operation. Configured for right-hand doors and field reversible, it adapts easily to changing site conditions. Sold as a lock body only, it provides the durable mechanical core needed to pair with your choice of Schlage trim, giving specifiers and installers flexibility while maintaining ANSI/BHMA Grade 1 performance in demanding environments.

Features

• Grade 1 certified mortise lock body built for heavy commercial use.
• Office function with simultaneous retraction of latch and deadbolt.
• Right-hand configuration that is field reversible for installation flexibility.
• Supplied as a lock body only for pairing with compatible L-series trim.
• Durable cast and machined internal components for long service life.

Functional Details

The office function with simultaneous retraction lets an authorized user secure the opening while allowing both the latchbolt and deadbolt to retract together in one operation, making it ideal for offices and rooms requiring convenient locking and quick egress.

• Latchbolt operated by lever from either side, except when outside lever is locked by key in outside lever.
• Deadbolt thrown or retracted by key from either side.
• When deadbolt is thrown, latchbolt and deadbolt are retracted simultaneously by inside lever.
