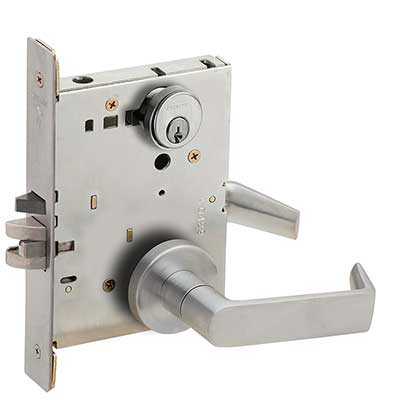

Schlage L9070P 06A 626 Classroom Mortise Lock, 06 Straight Return Lever, A Rose, Std P 6 pin Cylinder, 2 Keys KR, Field Reversible, Satin Chrome Finish

  • SKU: L9070P606A626

Schlage L9070P 06A 626 Classroom Mortise Lock, 06 Straight Return Lever, A Rose, Std P 6 pin Cylinder, 2 Keys KR, Field Reversible, Satin Chrome Finish

  • SKU: L9070P606A626
Sale price$1,144.00/ea
In Stock
In Stock

Schlage L9070P 06A 626 Classroom Mortise Lock, 06 Straight Return Lever, A Rose, Std P 6 pin Cylinder, Keyed Random, [2] Keys, 4 7/8" Strike, Field Reversible, Satin Chrome Finish

The Schlage L9070P 03A 630 is a Grade 1 Classroom function lock. This L9000 Series function is an 70 or Classroom function. A Classroom function lock functions, Latchbolt retracted by lever/ knob from either side unless outside lever is locked by key, Unlocked from outside by key, Auxiliary latch deadlocks latchbolt when door is closed, Inside lever always free for immediate egress. The 03A is the 03 Straight Return lever and A Rose. B stands for the SFIC small format interchangeable core sold less cylinder. The finish is a 630/US32D satin stainless steel finish.

The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. The ability to suite across electronic, tubular, exit trim, and multi-point locks allows the Schlage L Series mortise lock to integrate seamlessly into any environment.



Manufacturer Schlage
Grade Grade 1
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL Listed
ANSI Number A156.13-2017 Series 1000, Grade 1
BAA Qualified Yes
Limited Warranty 3 Years
Fire Rated 3 Hours {A}



Function 9070-Classroom
Function Family Classroom
ANSI Function F05 - Classroom
Lever/Knob Design 06 Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design A Rose
Rose/Escutcheon Dimensions 2-1/8"
Cylinder Type Conventional Cylinder
Num Pins 6
Std. Keyway S123
Keying Keyed Different
Key(s) Cut
Num of Keys 2
Cylinder Length 1-1/8"
Cam Type Schlage L
Cam Number L583-254
Handing Field Reversible
Door Thickness 1-3/4"
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4"
Lock Face Size 8" x 1-1/4"
Bolt Projection 3/4" Latch
Std. Strike Number 10-072 1316 626
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-3/16"
Dust Box Plastic
Screws Combination
Product Type Mortise Lock


Cylinder Mortise Handing Chart
