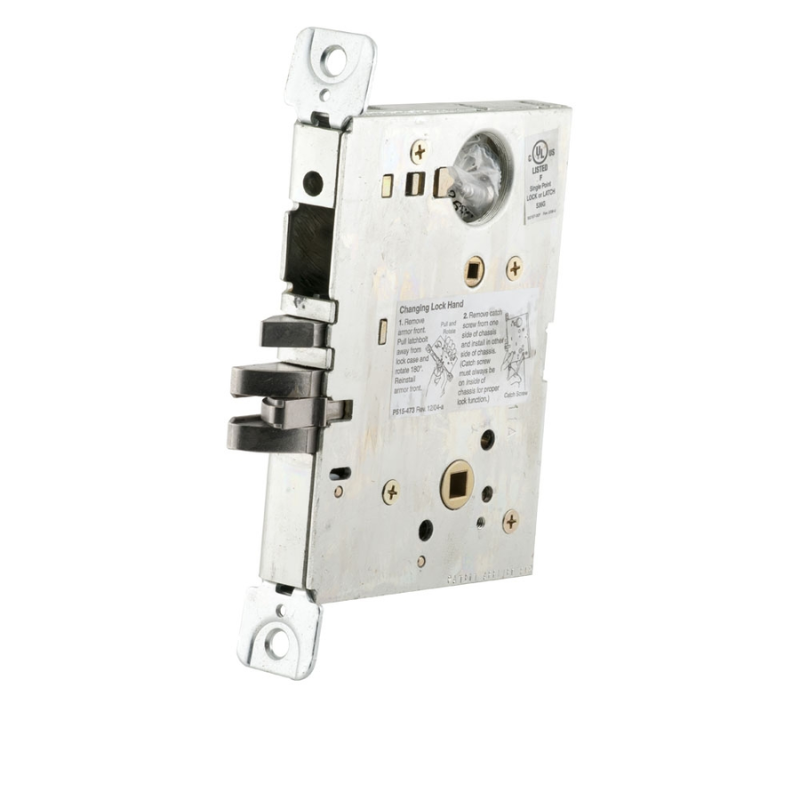

Schlage L9473LB-RH-134 Dormitory Mortise Lock with Deadbolt, Lock Body Only, Grade 1, Right Handed, Field Reversible

The Schlage L9473LB-RH-134 is a Grade 1 dormitory mortise lock with deadbolt from the trusted L9000 series, engineered for demanding commercial applications where durability and security are essential. Supplied as a lock body only, this right-handed unit is field reversible, giving installers flexibility on the job site. Built to ANSI/BHMA A156.13 standards, the L9473 combines a heavy-duty mortise chassis with a deadbolt function ideal for dormitories, apartments, and other multi-occupant environments. Its rugged construction and proven reliability make it a dependable choice for high-traffic openings that require both latching and deadbolt operation from a single, robust lock body.

Features

• Grade 1 certified mortise lock built for heavy-duty commercial use.
• Dormitory function with integrated deadbolt for added security.
• Supplied as a lock body only for flexible specification and installation.
• Right-handed configuration that is field reversible to suit either door swing.
• Durable mortise chassis engineered for long-term performance in high-traffic settings.

Functional Details

The L9473 dormitory function allows the deadbolt to be thrown or retracted by key from either side, while the latchbolt operates by lever or knob, providing controlled access and secure locking for multi-occupant applications.

• Deadbolt thrown or retracted by key from either side.
• Latchbolt operated by lever or knob from either side unless deadbolt is thrown.
• Outside lever or knob is fixed when deadbolt is projected.
