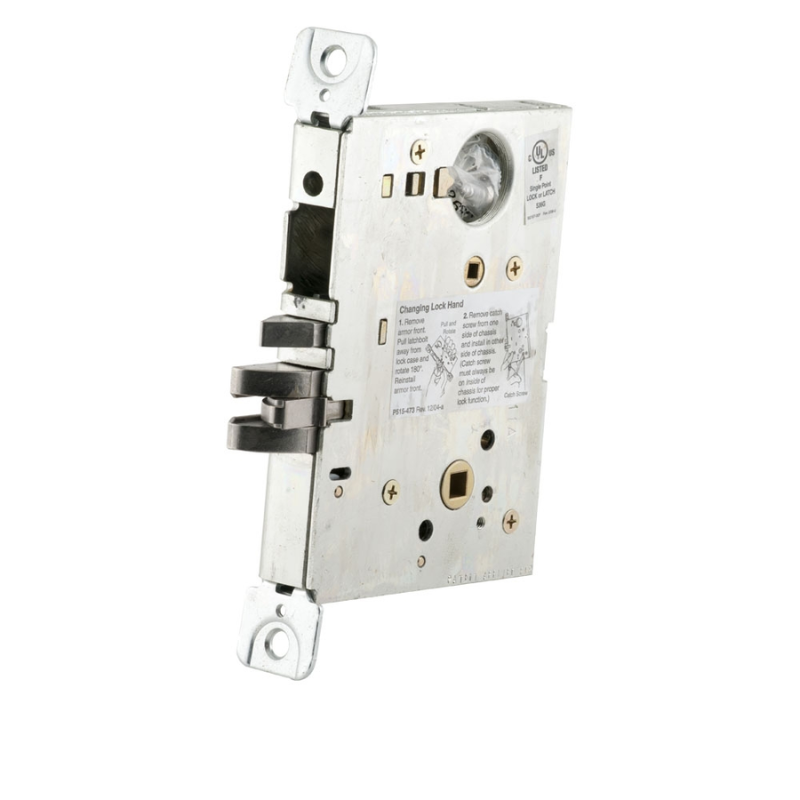

Schlage L9485LB-RH-134 Faculty Restroom Mortise Lock, Lock Body Only, Grade 1, Right Handed, Field Reversible

The Schlage L9485LB-RH-134 is a Grade 1 faculty restroom mortise lock body designed for high-traffic commercial applications where controlled privacy and easy access are essential. Part of Schlage's proven L9000 series, this lock body ships without trim, giving installers the flexibility to pair it with the levers, roses, and finishes that fit the project. It arrives configured for right-hand doors but is fully field reversible, so a single unit can adapt to a variety of openings. Built to withstand demanding institutional environments like schools, hospitals, and office buildings, it delivers dependable long-term performance and meets ANSI/BHMA Grade 1 requirements.

Features

• Grade 1 certified mortise lock body engineered for heavy commercial use.
• Faculty restroom (L9485) function for privacy control with faculty override.
• Ships as a lock body only, allowing custom trim and finish selection.
• Right-handed configuration that is field reversible for installation flexibility.
• Durable steel construction suited for long-term reliability in busy facilities.

Functional Details

The L9485 faculty restroom function provides privacy while allowing authorized staff to override the lock in an emergency. The inside lever locks the outside lever, and a key from the outside retracts the latch for access.

• Outside lever is locked by turning the inside thumbturn.
• Outside key unlocks the outside lever and retracts the latchbolt.
• Turning the inside lever or closing the door releases the locked condition.
