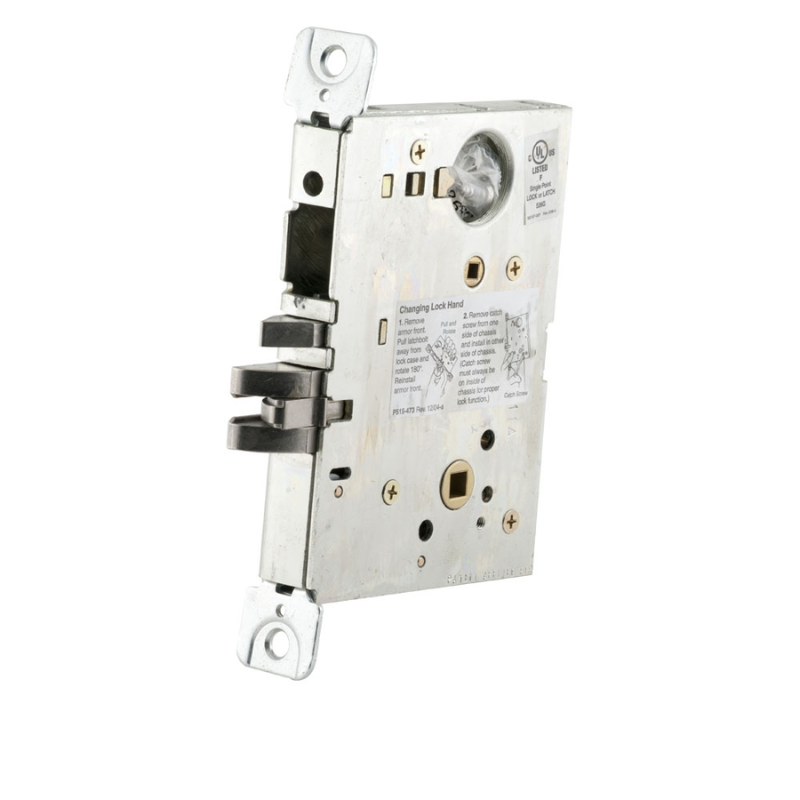

Schlage LV9080LB-RH-134 Vandlgard Storeroom Mortise Lock, Lock Body Only, Grade 1, Right Handed, Field Reversible

The Schlage LV9080LB-RH-134 is a Grade 1 Vandlgard storeroom mortise lock body designed for demanding commercial openings where security and durability are essential. Part of Schlage's respected L-Series, this lock body ships as a standalone component, giving installers flexibility to pair it with the trim and cylinder of their choice. The Vandlgard feature protects the mechanism from abuse by allowing the outside lever to rotate freely when locked, preventing forced entry damage. Configured right handed and field reversible, it adapts easily to a wide range of door setups while delivering the long-term reliability expected from Schlage mortise hardware in high-traffic environments.

Features

• Grade 1 certified mortise lock body built for heavy-duty commercial use.
• Vandlgard function guards against vandalism by letting the locked outside lever spin freely.
• Storeroom function keeps the door secured while allowing key entry from the outside.
• Ships as a lock body only for pairing with your preferred trim and cylinder.
• Right handed orientation with field-reversible handing for on-site adjustment.

Functional Details

The storeroom function keeps the latchbolt retracted by the key or by the inside lever at all times, ensuring the door remains secured for controlled access while permitting free egress from within.

• Latchbolt operated by key outside or by inside lever.
• Outside lever is fixed.
• Key retracts latchbolt.
• Inside lever always active for immediate egress.
