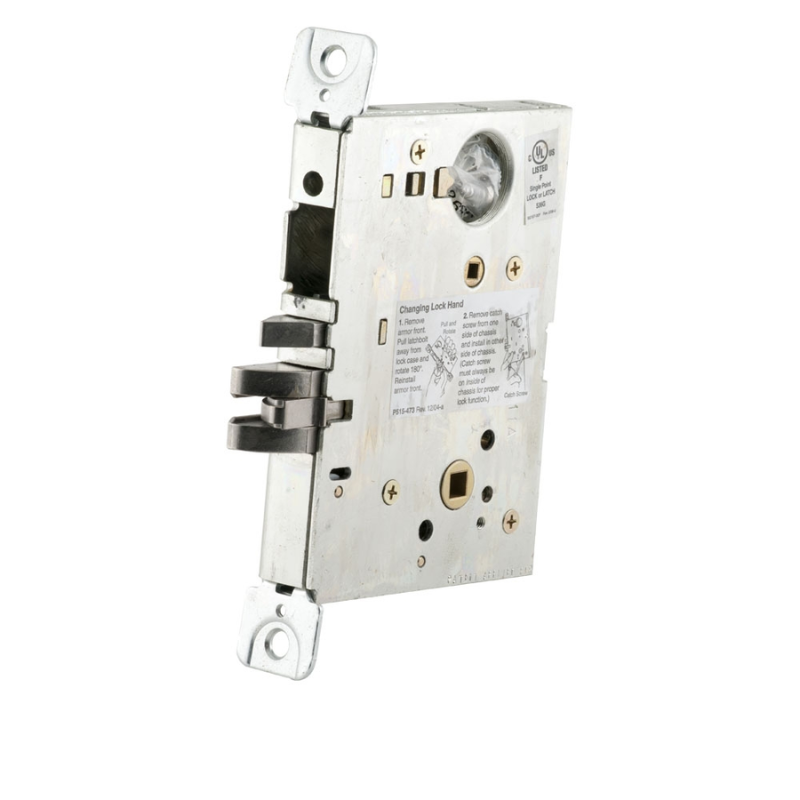

schlage LV9456LB-LH-134, LV9456 Mortise Lock Body, wDeadbolt, Corridor/Clsrm, Vandlgard, Vandlgard, Dist Pack L283-605, Left Hand

The Schlage LV9456LB-LH-134 is a corridor/classroom mortise lock body from the reliable L Series, engineered for high-traffic commercial openings that demand security and durability. This left-hand configuration features an integrated deadbolt and Vandlgard function, allowing the outside lever to move freely when locked to help prevent damage from forced entry or abuse. Built to ANSI/BHMA Grade 1 standards, it delivers dependable performance in schools, offices, healthcare facilities, and other institutional environments. Shipped as a distribution pack, the LV9456 offers versatile lock body coverage for demanding applications while maintaining Schlage's proven reputation for long-lasting mechanical strength and smooth daily operation.

Features

• Corridor/classroom mortise lock body with an integrated deadbolt for added security.
• Vandlgard function protects the lock against abuse from forced rotation of the outside lever.
• ANSI/BHMA Grade 1 rated for heavy-duty commercial use.
• Configured for left-hand door installations.
• Supplied as a distribution pack (L283-605) for flexible field application.

Functional Details

The corridor/classroom Vandlgard function allows the door to be locked or unlocked by key from the outside, while the deadbolt provides secure locking. Vandlgard clutching lets the outside lever rotate freely without retracting the latch when locked, reducing wear and vandalism damage.

• Latchbolt operated by lever from either side except when outside lever is locked by key.
• Deadbolt thrown or retracted by key from either side.
• Outside lever clutches to prevent lock damage when locked and lever is forced.
