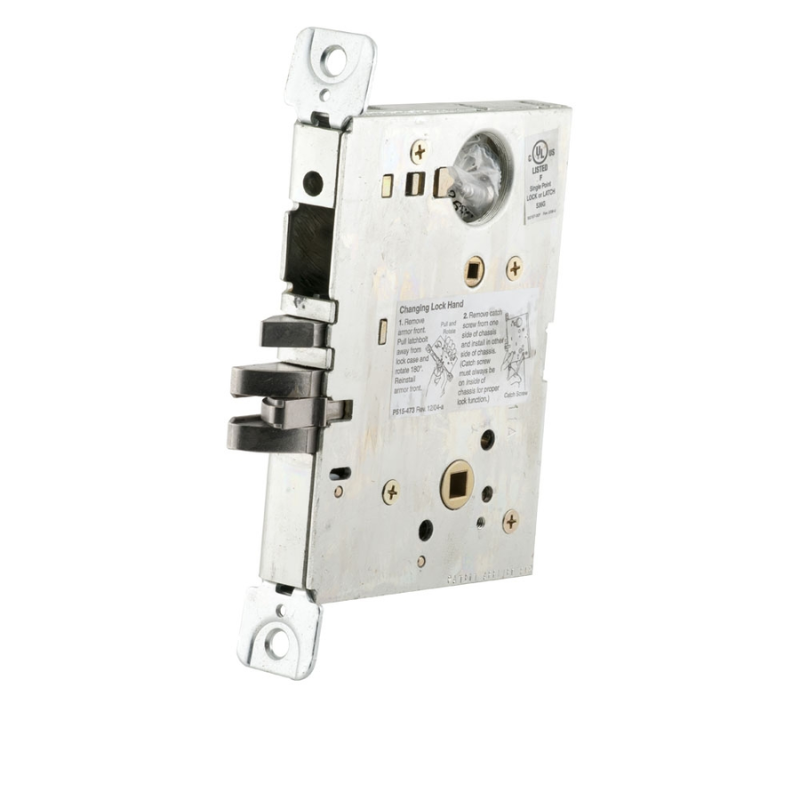

Schlage LV9480/85/86 Mortise Lock Body, with Deadbolt, Storeroom /, Faculty Restroom, Vandlgard, Distributor Pack L283-607, Grade 1, Right Hand, Field Reversible

The Schlage LV9480/85/86 Mortise Lock Body pairs heavy-duty security with reliable everyday function for high-traffic commercial openings. Part of the L Series and built to ANSI/BHMA Grade 1 standards, this lock body combines storeroom and faculty restroom functionality with an integrated deadbolt and Schlage's Vandlgard feature to protect against forced handle abuse. Shipped as a distributor pack under the L283-607 designation, it arrives configured right hand and is field reversible for straightforward installation on either door orientation. Designed and manufactured for durability, it delivers dependable performance in schools, offices, healthcare facilities, and other demanding environments where long-term reliability matters.

Features

• Grade 1 mortise lock body engineered for high-traffic commercial applications.
• Combines storeroom and faculty restroom functionality with an integrated deadbolt.
• Vandlgard feature protects the lock mechanism against forced-lever abuse.
• Ships right hand and is field reversible for use on either door handing.
• Distributor pack configuration under the L283-607 designation.

Functional Details

The storeroom and faculty restroom function keeps the outside lever locked at all times, requiring a key for entry, while the inside lever always allows free egress. The Vandlgard mechanism lets the outside lever rotate freely when locked, preventing damage to the internal components during attempted forced entry, and the deadbolt adds a secondary layer of security.

• Latchbolt operated by lever from either side except when outside lever is locked by key.
• Deadbolt thrown or retracted by key outside or turn inside.
• Outside lever remains locked; key retracts deadbolt and latchbolt simultaneously.
• Inside lever always active for immediate egress.
