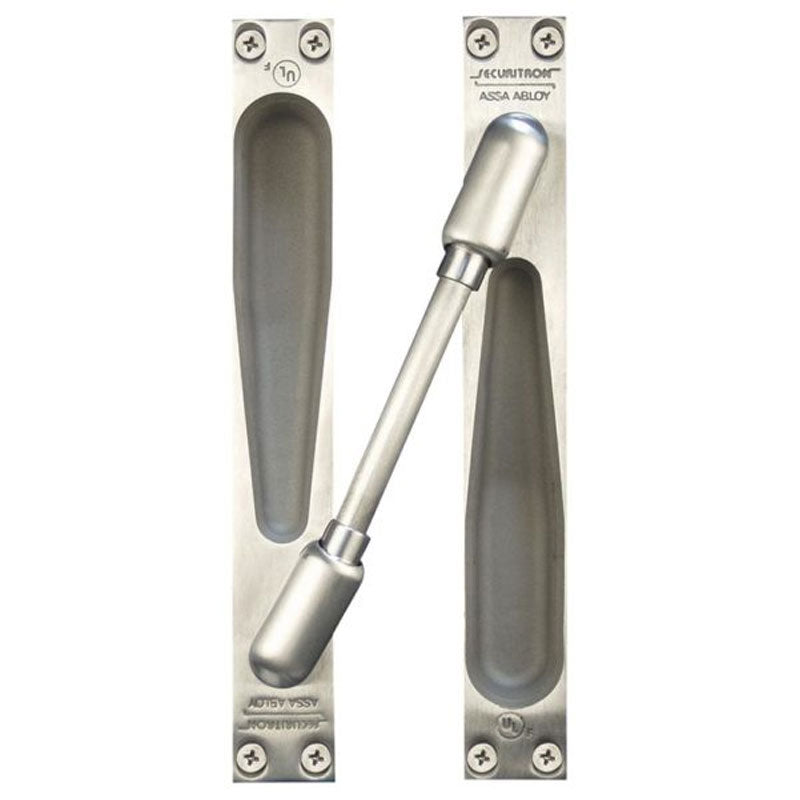

The Securitron CEPT-10-US32D is a heavy-duty, tamper-resistant Concealed Electrical Power Transfer (CEPT)
Securely transfers power and data from the hinge side of the frame to electrified hardware on the door and comes in a US32D Satin Stainless Steel finish.
Features:
Mortises into the edges of the door and frame.
Tamper-resistant. No exposed openings prevent foreign objects from reaching the wires or jamming the device.
All metal construction including backboxes - no plastic.
10-wire configuration includes 2-18 gauge wires for higher current devices.
Available with CAT-5E and ElectroLynx compatible connectors.
Four architectural finishes: US32, US04, US10, and US10B.
Installs above 2nd hinge.
7/8" knockouts on back boxes accommodate EMF-type fittings.
Tested to 1,000,000 cycles.
Will only function with butt hinges - up to 6".
Will not work on center-hung or balanced doors.
Will work with Continuous Hinges - please check with Continuous Hinge Manufacturer as to their cutout availability and charge for this cutout.
