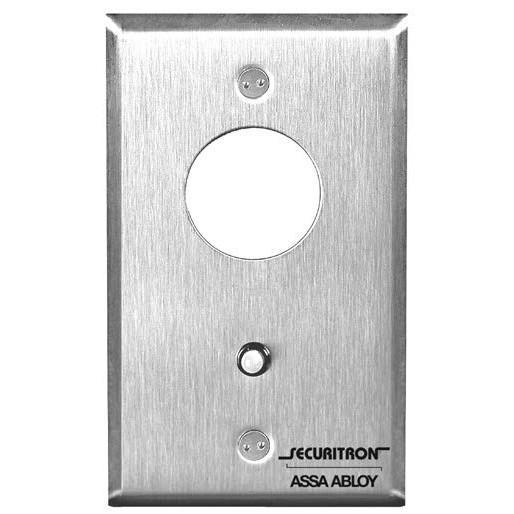

Securitron MK Momentary Mortise Key Switch Single Gang, SPDT, Less Mortise Cylinder, US32D/630 Stainless Steel Finish
Securitron MK Features:
- Standard with 12 or 24VDC bi-color LED
- The backing bracket permits integration with any 1-1/4" [32mm] or 1-1/8" [28mm] mortise cylinder (not included)
- Additional switch position on the backing bracket allows another switch to be activated by turning the key in the opposite direction
- 5 Amp rated plunger switch
- Includes anti-tamper screws
Securitron MK Specifications:
| Dimensions: | Single Gang |
| Switch Mode: | Momentary Action |
| Switch Configuration: | SPDT |
| Switch Rating: | 5 Amp Rated |
| Warranty: | 1 Year |
Securitron MK Certifications:
| UL Rated: |
UL listed |
| Certifications |
California State Fire Marshal: 3774-0923: 102 |
| NYC MEA: |
City of New York MEA: 251-95E and 254-95E |
