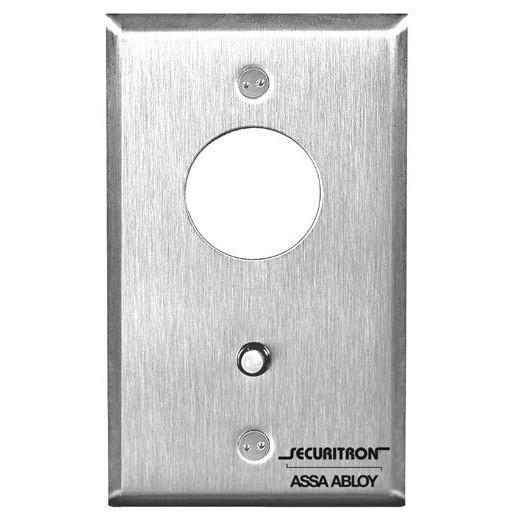

Securitron MK Features

The MK Keyswitch supports electric lock control; alarm panel arming, reset and override when paired with any mortise cylinder 1-1/8" to 1-1/2".

• Standard with 12 or 24VDC bi-color LED
• The backing bracket permits integration with any 1-1/4" [32mm] or 1-1/8" [28mm] mortise cylinder (not included)
• Additional switch position on the backing bracket allows another switch to be activated by turning the key in the opposite direction
• 5 Amp rated plunger switch
• Includes anti-tamper screws

SPDT: Single Pole - Double Throw (SPDT) Switches with one input and two outputs. When the switch operation occurs, the connection shifts from output A to output B

Alternate Switch: An alternate switch changes state upon activation and does not change back until reactivated.
