Description

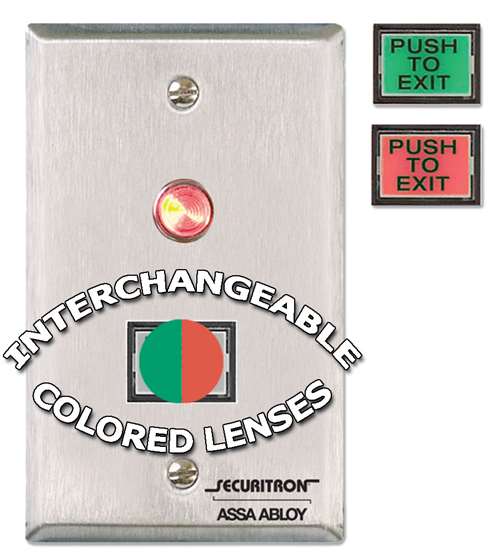

Securitron PB31" by 3/4" Illuminated "Push to Exit" Button, Double Pole Single Throw, Momentary Contact, Single Gang US32D/630 Stainless Steel Finish
Securitron PB3 Momentary Illuminated 1" x 3/4" Rectangle DPST Push Button.
Securitron PB3 Features:
- Includes switchable green and red lenses
- Red LED on the plate where applicable
- 3 Amp rated contacts
- Stainless Steel single-gang plate: 4.5" x 2.75" [114mm x 70mm]
- Stainless Steel narrow stile plate: 4.5" x 1.75" [114mm x 44mm]
- Surface Mount: 3.875" x 2" [98mm x 51mm]
- Field convertible from DPST to DPDT
Securitron PB3 Specifications:
| Dimensions: | Single Gang Plate: 4.5" x 2.75" (114mm x 70mm) |
| Switch Mode: | Momentary Action |
| Switch Configuration: | DPST, DPDT |
| Switch Rating: | 3 Amp Rated |
| Warranty: | 1 Year |
Securitron PB3 Certifications:
| Grade: |
Grade 1 |
| UL Rated: |
, UL listed |
