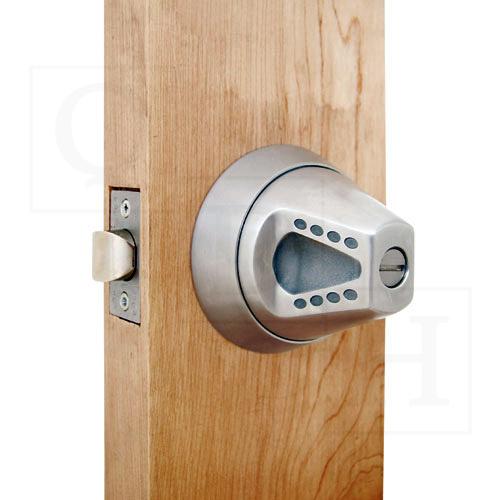

Townsteel CRX-K-81-630 Ligature Resistant Entry-Office Cylindrical Knob Lockset 2 3/4" backset - Schlage "C" Keyway, Keyed Random, US32D Satin Stainless Steel Finish
The Townsteel CRX-K-81-630 Ligature Resistant Cylindrical Knob Lockset Office Entry Function With a Schlage "C" Keyway Standard, Keyed Random, 2 3/4" backset In a 630 Satin Stainless Steel Finish. The CRX-K Is Ideal For Use in Behavioral Health Care Units, Institutions. CRXK Series cylindrical lock is ANSI/BHAM Certified grade 1
| Technical Specs | |
| Function | 81-Office Entry |
| ANSI Function |
F81 - Office |
| Lever/Knob Design | K-Knob |
| Cylinder Type |
Conventional Cylinder |
| Door Thickness | 1-3/4 In. |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4 In. |
| Lock Face Size | 2-1/4 In. x 1-1/8 In. |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8 In. |
| Std. Strike Width | 1-1/4 In. |
| Screws | Combination |
| Product Type | Cylindrical Lock |
