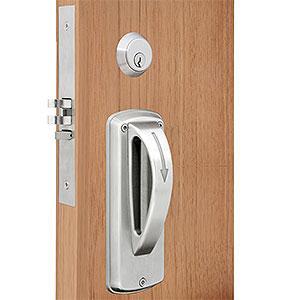

TownSteel MRX-A-08-630 5 Point Ligature Resistant Mortise Lockset With Arch Trim, Front Door Or Corridor Lock Function, Schlage "C'" Keyway, Keyed Random, [2] Keys, ANSI, Grade 1, US32D Satin Stainless Steel

TownSteel's MRX-A-08-630 mortise lockset delivers institutional-grade security with five-point ligature-resistant engineering designed for high-security corridor and entry applications. This heavy-duty mechanism features Schlage C keyway compatibility, random keying, and includes two keys for convenient access management. Built to ANSI standards with satin stainless steel construction (US32D finish), the arch trim design integrates seamlessly into modern architectural specifications while maintaining the durability required for demanding commercial environments.

TOWN STEEL MRX-A-08-630 Features

• The MRX-A series Mortise Lockset with Ligature Resistant Arch Trim is designed for facilities housing patients and individuals at risk
• MRX-A with 5-Point Ligature Resistant Arch trim for new or retrofit application
• An integral part of the Health/Safety and Accident Prevention programs
• 5 Point design: a 0.5 mm diameter wire or greater cannot be attached to the lock from any direction (up, down, horizontal right, horizontal left, or perpendicular to the surface of the door)
• High-quality stainless steel components
• Tamper-resistant security stainless steel mounting screws
• Horizontal or vertical trim mounting
• Variety of mortise functions available to fit unique security and safety requirements
• Meets or exceeds all performance testing of ANSI A156.13 Grade 1 Mortise Locks
• UL & ULC Listed 3-Hour Fire Rating
• Non-Keyed
• Field Reversible
• Style: Arch Trim
• Function: Passage/Closet (01)
• Trim: with Arch Levered
• Finish: Satin Stainless Steel (US32D)

Door Thickness: 1-3/4" Standard
Backset: 2-3/4"
Cover Plate: Stainless Steel, 7-1/2" x 2-3/4" x 1/2"
Arch Lever: Stainless Steel
Faceplate: Stainless Steel, 1-1/4" x8"
Strike: Stainless Steel, ASA, 1-1/4" x 4-7/8"
Mounting: Through-bolt, tamper-resistant mounting screws, for wood and metal door
Cylinder: Brass with stainless steel cover, 6pin, Schlage "C" keyway standard, 2 keys per cylinder
Small Format IC: Available with or without core, 6 or 7pin core
Schlage Large Format IC: Available in less core
Corbin Large Format IC: Available in less core, for 6pin core
Warranty: 10 Year Limited
Finish: Satin Stainless Steel(630/US32D)
