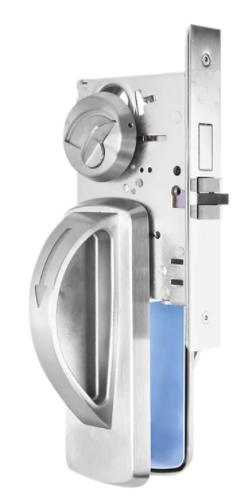

TownSteel MRX-A-46-630 5 Point Ligature Resistant Mortise Lockset With Arch Trim, Institutional Privacy Function With Key Lock Feature, Schlage "C" Keyway, Keyed Random, [2] Keys, ANSI, Grade, US32D Satin Stainless Steel

TownSteel's MRX-A-46-630 mortise lockset delivers institutional-grade security with ligature-resistant engineering designed for high-security environments. This five-point locking mechanism combines privacy function with keyed access, utilizing Schlage "C" keyway compatibility. Finished in US32D satin stainless steel with elegant arch trim, it accommodates a 2¾" backset and meets ANSI standards. Includes two randomly keyed keys for immediate deployment. Purpose-built for facilities requiring enhanced safety protocols without compromising accessibility.

TOWNSTEEL MRX-A-46-630 Features

• The MRX-A series Mortise Lockset with Ligature Resistant Arch Lever Trim is designed for facilities housing patients and individuals at risk
• MRX-A with 5-Point Ligature Resistant Arch trim for new or retrofit application
• An integral part of the Health/Safety and Accident Prevention programs
• 5 Point design: a 0.5 mm diameter wire or greater cannot be attached to the lock from any direction (up, down, horizontal right, horizontal left or perpendicular to the surface of the door)
• High-quality stainless steel components
• Tamper-resistant security stainless steel mounting screws
• Horizontal or vertical trim mounting
• Variety of mortise functions available to fit unique security and safety requirements
• Meets or exceeds all performance testing of ANSI A156.13 Grade 1 Mortise Locks
• UL & ULC Listed 3-Hour Fire Rating
• Non-Keyed
• Field Reversible
• Style: Arch Trim
• Function: Passage/Closet (01)
• Trim: with Arch Levered
• Finish: Satin Stainless Steel (US32D)

Door Thickness: 1-3/4" Standard
Backset: 2-3/4"
Cover Plate: Stainless Steel, 7-1/2" x 2-3/4" x 1/2"
Arch Lever: Stainless Steel
Faceplate: Stainless Steel, 1-1/4" x8"
Strike: Stainless Steel, ASA, 1-1/4" x 4-7/8"
Mounting: Through-bolt, tamper-resistant mounting screws, for wood and metal door
Warranty: 10 Year Limited
Finish: Satin Stainless Steel(630/US32D)
