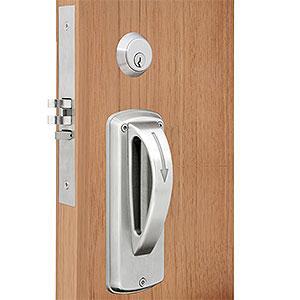

Townsteel MRX-A-LTF-630 Heavy Duty Ligature Resistant Female Privacy Mortise Lock Arch Trim, Schlage C Core, US32D/630 Satin Stainless Steel

  • SKU: MRXALTF630LH
  • ✓
    Available (2‑3 Weeks)
    2-3 Weeks Lead Time
Your Price
$1,664.00/ea
Handing: LH Left Hand

TownSteel MRX-A-LTF-630 5 Point Ligature Resistant Mortise Lockset With Arch Trim, Female Privacy LTF Function With T Turn, Schlage "C" Keyway, Keyed Random, [2] Keys, ANSI, Grade 1, US32D Satin Stainless Steel

TownSteel MRX-A-LTF-630 represents institutional-grade security engineered for specialized facility applications. Certified to ANSI Grade 1 with ligature-resistant construction, it addresses critical safety requirements in sensitive environments. The female privacy mechanism with T-turn operation provides controlled access management and emergency egress capability. The five-point locking system delivers consistent performance under demanding conditions. Fabricated from satin stainless steel for superior longevity and corrosion resistance, it features Schlage C keyway compatibility and arrives with two randomly keyed keys. The refined arch trim complements contemporary facility design while maintaining the exacting security standards required in healthcare, correctional, and behavioral health settings

Function
LTF Female Privacy
Lever/Knob Design
Arch Trim
Handed  Yes
Door Thickness 1-3/4 In.
Std. Latch Type Spring Latch (Unguarded)
Std. Latch Backset Dim 2-3/4 In.
Lock Face Size 8 In. x 1-1/4 In.
Std. Strike Type ASA
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Combination
Product Type Mortise Lock



UL: UL 10C listed a 3-hour rating
ANSI: A156.13-2012 Grade 1 Certified
BAA: Meets requirements of the Buy American Act
ADA: Meets requirements of the Americans with Disabilities Act
OMH: Accepted by New York State Office of Mental Health Patient Safety Standard
Product Cut Sheet

Cylinder Mortise Handing Chart
