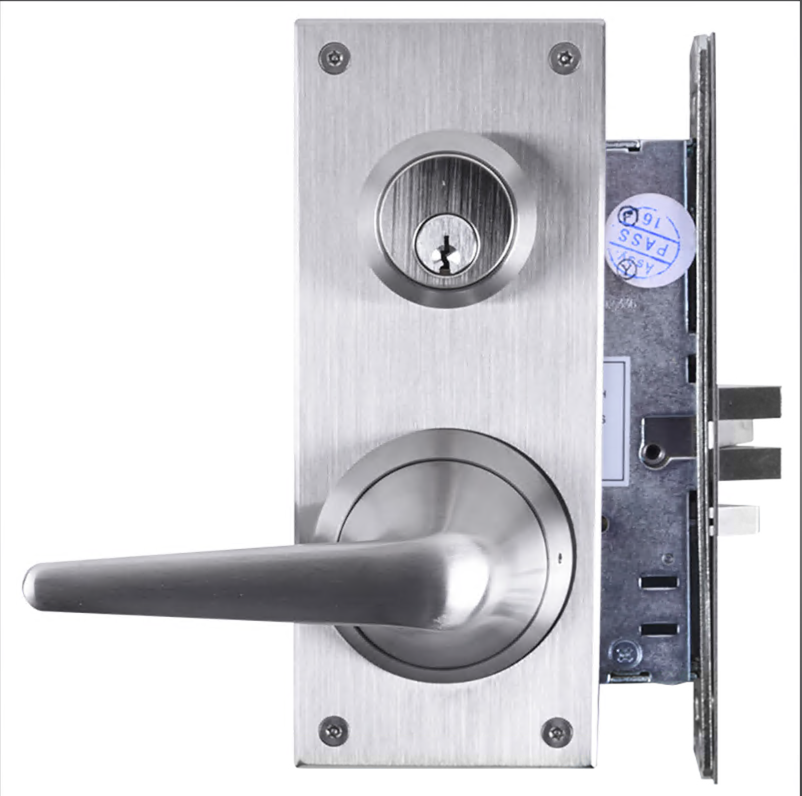

Townsteel MRX-E-L-04-630 Ligature Resistant Entry/Office Mortise Lever Lockset with Escutcheon Trim Schlage C Cylinder, US32D Satin Stainless Steel

  • SKU: MRXEL04630
Townsteel MRX-E-L-04-630
Townsteel MRX-E-L-04-630
Townsteel MRX-E-L-04
Townsteel MRX-E-L-04 Anti-Ligature
Townsteel MRX-E-L-04 Anti-Ligature
Zoomed view
All TOWNSTEEL Products

Townsteel MRX-E-L-04-630 Ligature Resistant Entry/Office Mortise Lever Lockset with Escutcheon Trim Schlage C Cylinder, US32D Satin Stainless Steel

  • SKU: MRXEL04630
  • ✓
    Available (2‑3 Weeks)
    2-3 Weeks Lead Time
Your Price
$1,544.00/ea

TownSteel MRX-E-L-04-630 Ligature Resistant Mortise Lockset With Escutcheon Lever Trim, Entry-Office Function, Schlage "C'" Keyway, Keyed Random, [2] Keys, ANSI, Field Reversible, Grade 1, US32D Satin Stainless Steel

TownSteel's MRX-E-L-04-630 mortise lockset combines entry-office functionality with ligature-resistant construction for secure access control. This Grade 1 lockset features a Schlage C keyway with random keying and two keys included, providing flexible security management. The satin stainless steel escutcheon lever trim resists corrosion and wear in high-traffic applications. Field-reversible design accommodates both left and right-hand door installations without modification. ANSI-certified for institutional reliability, this lockset prioritizes safety in sensitive environments while maintaining professional aesthetics and operational durability.

ANSI Function
F04 - Entry/Office
Handed Yes
Lever/Knob Design
Ligature Resistant Lever
Rose/Escutcheon Design
Escutcheon
Cylinder Type
Mortise Cylinder
Door Thickness 1-3/4 In.
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4 In.
Lock Face Size 8 In. x 1-1/4 In.
Std. Strike Type ASA
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Combination
Product Type Mortise Lock

Product Cut Sheet

Cylinder Mortise Handing Chart
