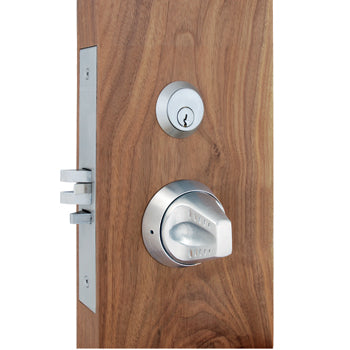

Townsteel MRX-S-K-04 Ligature Resistant Entry/Office Mortise Knob Lockset with Sectional Trim - 2 3/4" Backset, Schlage C Cylinder KR, US32D/630 Satin Stainless Steel Finish
Townsteel MRX-S-K-04 is a Grade 1 Heavy Duty Entry/Office function Ligature Resistant Mortise Knob Lockset with Sectional trim. The Townsteel MRX-S-K-04 has a 2 3/4" backset, Schlage C Cylinder KR, and comes in US32D Satin Stainless Steel Finish.
Townsteel MRX-S-K-04 Features
- High-quality Stainless steel components
- Meets or exceeds all performance testing of ANSI A156.13 Grade 1 mortise locks
- An integral part of your Health/Safety and Accident Prevention programs
- The mortise is UL listed for a 3-hour fire door
- Variety of mortise functions available to fit your unique security and safety requirements
Townsteel MRX-S-K-04 Specifications
Door Thickness:1-3/4" standard, other door thickness available when specified Backset:2-3/4" Lock Case: Heavy Gauge Plated Steel Armored Front: Wrought stainless steel or brass-adjustable angel and attached by screws to the lock case front Latch bolt: Stainless steel Guard bolt: Stainless steel Stop works: Stainless steel Strike: Stainless steel 4-7/8" x 1-1/4" curved lip ANSI strike Handing: Non-handed, field reversible without opening chassis cover Trim: Satin stainless steel, sectional Cylinder: As specified Keyway: As specified Finishes: Satin stainless steel (630/US32D)
Townsteel MRX-S-K-04 Certifications
| ADA: |
Meets guidelines of the Americans with Disabilities Act |
| UL: |
Mortise case UL listed for up to 3-hour fire-rated single swing door(4'x8') |
| ANSI: |
Meets or exceeds all Grade 1 requirements of ANSI/BHMA A156.3 Series 1000 |
| BAA: |
Meets guidelines of the Buy American Act |
