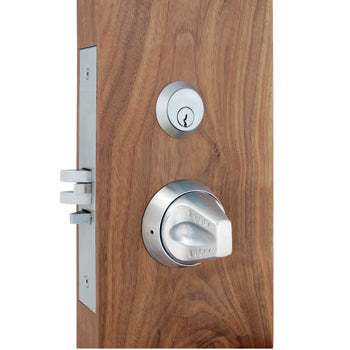

Townsteel MRX-S-K-05 Ligature Resistant Classroom Mortise Knob Lockset with Sectional Trim - 2 3/4" Backset, Schlage C Cylinder KR, US32D/630 Satin Stainless Steel Finish
Townsteel MRX-S-K-05 is a Grade 1 Heavy Duty Classroom function Ligature Resistant Mortise Knob Lockset with Sectional trim. The Townsteel MRX-S-K-05 has a 2 3/4" backset, Schlage C Cylinder KR, and comes in US32D Satin Stainless Steel Finish.
Townsteel MRX-S-K-05 Features
High-quality Stainless steel components
Meets or exceeds all performance testing of ANSI A156.13 Grade 1 mortise locks
An integral part of your Health/Safety and Accident Prevention programs
A mortise is UL listed for a 3-hour fire door
Variety of mortise functions available to fit your unique security and safety requirements
Townsteel MRX-S-K-05 Specifications
Door Thickness:1-3/4" standard, other door thickness available when specified Backset:2-3/4" Lock Case:Heavy Gauge Plated Steel Armored Front:Wrought stainless steel or brass-adjustable angel and attached by screws to the lock case front Latch bolt:Stainless steel Guard bolt:Stainless steel Stop works:Stainless steel Strike:Stainless steel 4-7/8" x 1-1/4" curved lip ANSI strike Handing:Non-handed, field reversible without opening chassis cover Trim:Satin stainless steel, sectional Cylinder:As specified Keyway:As specified Finishes: Satin stainless steel (630/US32D)
Certifications
ADA:
Meets guidelines of the Americans with Disabilities Act
UL:
Mortise case UL listed for up to 3-hour fire-rated single swing door(4'x8')
ANSI:
Meets or exceeds all Grade 1 requirements of ANSI/BHMA A156.3 Series 1000
