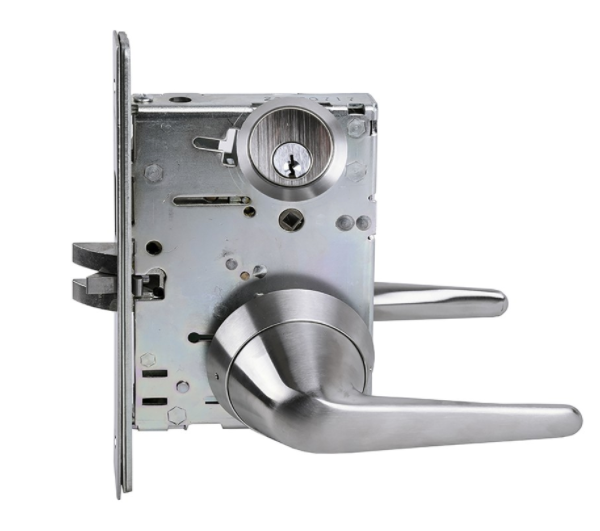

Townsteel MRX-S-L-04 Ligature Resistant Entry/Office Mortise Lever Lockset with Sectional Trim - 2 3/4" Backset, Schlage C Cylinder KR, US32D/630 Satin Stainless Steel Finish
Townsteel MRX-S-L-04 is a Grade 1 Heavy Duty Entry/Office function Ligature Resistant Mortise Lever Lockset with Sectional trim. The Townsteel MRX-S-L-04 has a 2 3/4" backset, Schlage C Cylinder KR, and comes in US32D/630 Satin Stainless Steel Finish.
Features
- High-quality Stainless steel components
- Meets or exceeds all performance testing of ANSI A156.13 Grade 1 mortise locks
- An integral part of your Health/Safety and Accident Prevention programs
- The mortise is UL listed for a 3-hour fire door
- Clutching mortise
- Field changeable clutching function can be activated for I/S and/or O/S levers
- Clutching mortise with Entrance or Exit - Lever rotation would be over 50 °. When locked the O/S lever (clutching side) is free rotating in the up or down position, I/S lever rotates upward and downward
- Variety of mortise functions available to fit your unique security and safety requirements
- Non-Handed field reversible
Specifications
Door Thickness: | 1-3/4" standard, other door thickness available when specified |
Backset: | 2-3/4" |
Lock Case: | Heavy Gauge Plated Steel |
Armored Front: | Wrought stainless steel or brass-adjustable angel and attached by screws to the lock case front |
Latch bolt: | Stainless steel |
Guard bolt: | Stainless steel |
Stop works: | Stainless steel |
Strike: | Stainless steel 4-7/8"X 1-1/4" curved lip ANSI strike |
Handing: | Non-handed, field reversible without opening chassis cover |
Trim: | Satin stainless steel, sectional |
Cylinder: | As specified |
Keyway: | As specified |
Finishes: | Satin stainless steel (630/US32D) |
Certifications
ADA: | Meets guidelines of the Americans with Disabilities Act |
UL: | Mortise case UL listed for up to 3-hour fire-rated single swing door(4'x8') |
ANSI: | Meets or exceeds all Grade 1 requirements of ANSI/BHMA A156.3 Series 1000 |
BAA: | Meets guidelines of the Buy American Act |
