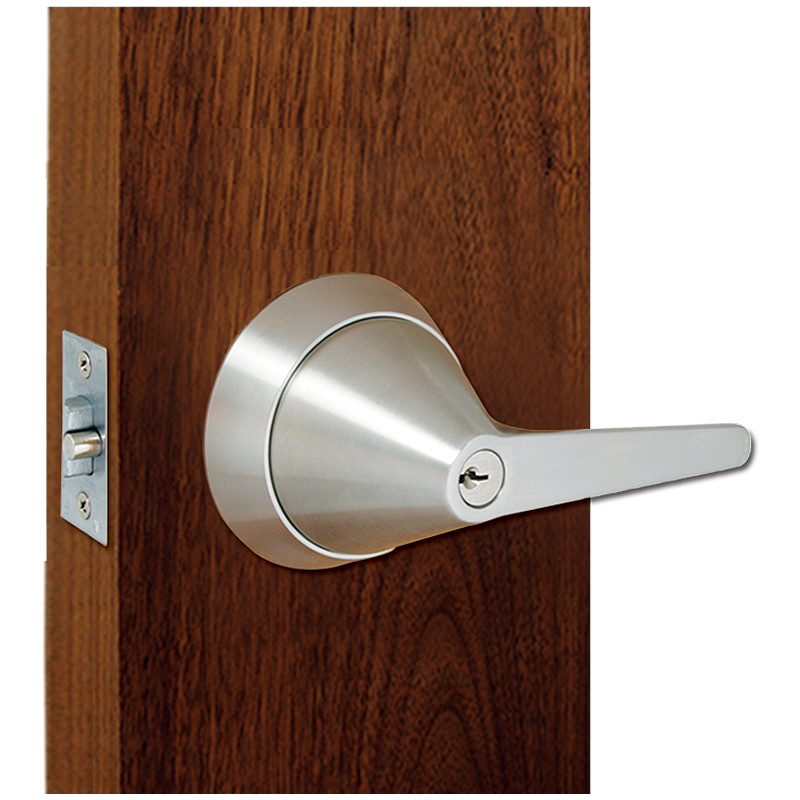

TownSteel TRX-L-86-630-SC-KD Ligature Resistant Storeroom Function Cylindrical Lever Lockset, SCH "C" Keyed Random, [2] Keys, 2 3/4 Backset, 4 7/8 ASA Strike, Grade 1, Satin Stainless Steel
Please call for 5" backset option.
| Technical Specs | |
| Function | 86- Storeroom |
| ANSI Function |
F86 - Storeroom |
| Cylinder Type |
Mortise Cylinder |
| Door Thickness | 1-3/4 In. - 2 In. |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4 or 5" |
| Lock Face Size | 2-1/4 In. x 1-1/8 In. |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8 In. |
| Std. Strike Width | 1-1/4 In. |
| Screws | Combination |
| Product Type | Cylindrical Lock |
The Townsteel TRX-L-86-630 Ligature Resistant Cylindrical Lever Lockset Storeroom Function Satin Stainless Steel Finish, TRX-L-86-32D Clutched Levers, Grade 1 Cylindrical Anti Ligature Lockset, Schlage c fixed core keyed random, 2 3/4" or 5" backset. Townsteel TRX Locks Outside Clutching Lever Protects Lock Against Abuse. For Use In Institutions, Behavioral Health Care Units, and Detention Facilities.
