Technical Specs
| Function | Field Selectable (Safe/Secure) |
| Operating Voltage | 12VACDC/24VACDC |
| Amp Draw | .509-.405-.215 / .556.253 |
| Keeper Size | Custom |
| Configuration | Centered |
| Faceplate Size | 9 In. X 1-3/4 In. |
| Switch Type | None |
| Product Type | Electric Strikes |
Product Specs
| Manufacturer | Trine |
| SKU | 4850-32D |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | Stainless Steel |
| Limited Warranty | 1 Year |
| Finish | 630/US32D |
| Finish Description | Satin Stainless Steel |
| Finish Family | Matte Silver |

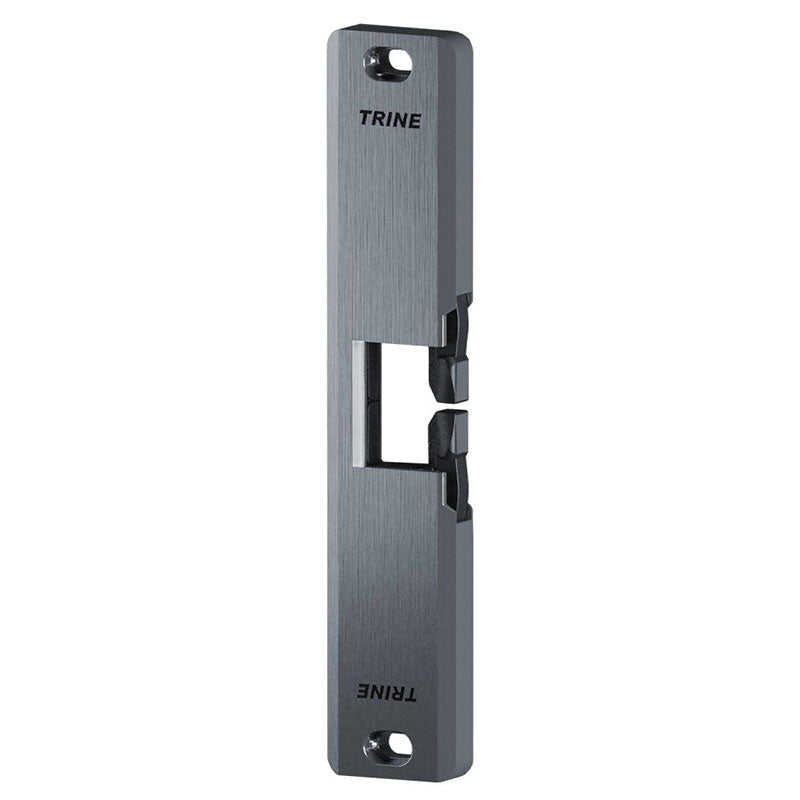

The Trine 4850-32D Rim Exit Strike is 1/2 Inch Surface Mounted, comes ready for 12/16/24DC, is Fail Safe/Secure, is for use with Rim Type Exit Devices, and comes in US32D Satin Stainless Steel finish.
Features:
- 1/2” thick Surface Mount electric strike comes with 1/4” and two (2) 1/16” Spacers plates -- the most versatile rim panic strike provides the flexibility of 6 different sizes!
- The electric strike Cavity is completely open -- which means the 4850 allows for an incremental depth up to a 1" throw -- competitor backplates do not allow for this versatility.
- Comes with Trines Patented 6-Pin Anchoring System
- Contains a one-piece locking mechanism with one Solenoid -- less parts mean less problems.
- Fail-safe/Fail-secure (field selectable).
- Grade 1 Electric Strike -- 1,000,000+ Life cycles -- 1,500+ lbs. Holding Force
- No cutting or worrying about voltage means you are always prepared.
- Everyday Low Current Draw
