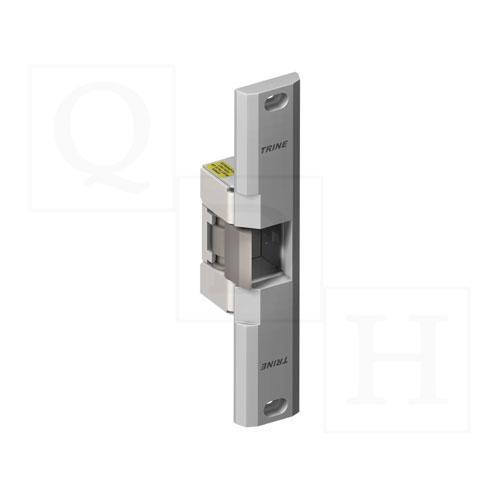

Trine EN850
Electric Strike 630/US32D FINISH
Member of the EN series
Trine EN850 Features
- 1/2" thick faceplate
- For use in new or replacement installation in wood or metal single door frames
- Semi-mortise type - backset 1-1/4" deep
- Use with surface mounted rim exit device with up to 1" throw
- Fail secure/Failsafe: field reversible on DC units
- Mounting and mechanism holes permit horizontal adjustment for ease of installation
- 45 º faceplate ramp
-
EN850 Features:
- Superior Strength -- 2,000+ lbs UL ® tested.
- Superior Life -- Durability of 1,000,000+ life cycles
- Superior Application - Outdoor UL ® rating allows the strike to be used anywhere - especially good for gates.
- For a version that can be used with a Gatebox and mounted anywhere. c
- Fail secure/Fail safe field reversible on DC units.
- Grade 1 Strike -- Contains a one-piece locking mechanism with one Solenoid -- fewer parts mean fewer problems.
- Left and Right handing is field reversible.
- You go anywhere strike!
EN850 Specifications:
- UL ® Listed 1034 - Indoor/Outdoor Burglary Resistant
- UL294 (6th Edition) listed
- BHMA 156.31 2001, Grade 1
- NYC MEA 79-01-E
- Not Fire Rated
EN Series Electrical Characteristics:
Volts Current Ohms (Ω) Duty Sound Wire 12AC 0.700 4.5 Intm. Buzz 1-Blue,
1-Orange/White24AC 0.370 18.0 Intm. Buzz 1-Blue,
1-Black/White12DC 0.280 43.0 Intm./Cont. Silent 2-Orange/White 24DC 0.150 164.0 Intm./Cont. Silent 2-Black/White
EN850 Available Finishes
EN850-32D -- Satin Stainless Steel - BHMA630 EN850-10B -- Dark Bronze - BHMA613 EN850-US3 -- Bright Brass -- BHMA605 EN850-US4 -- Satin Brass -- BHMA606 EN850-10 -- Satin Bronze -- BHMA612 EN850-32 -- Polished Chrome -- BHMA629
