Description

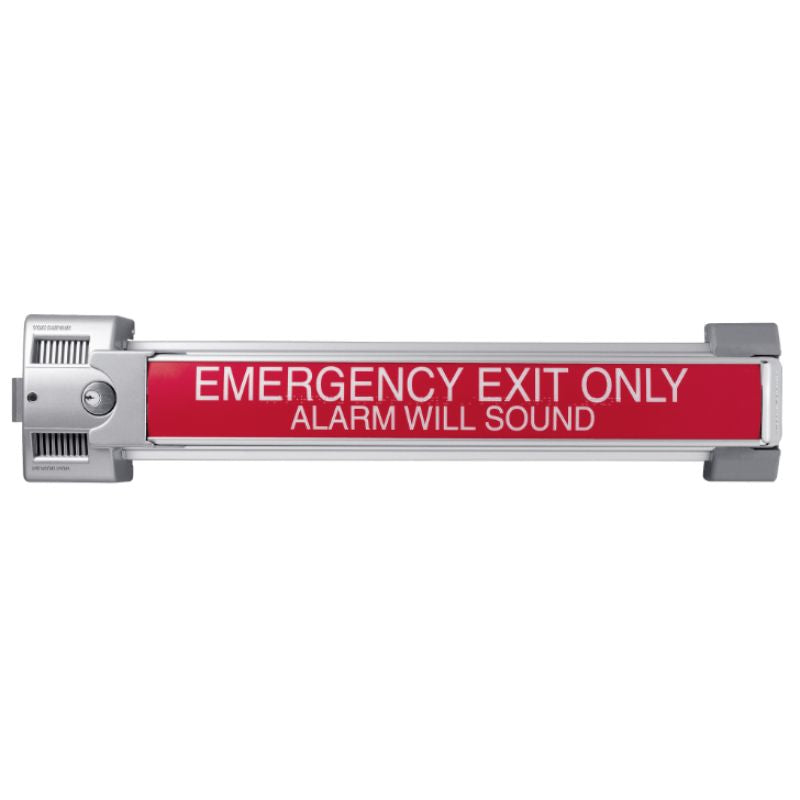

Von Duprin 2670-US28-3216 GUARD-X Exit Alarm Lock Device, Exit Only, with Rim Cylinder, For 3-4ft doors in Satin Aluminum Finish
The Von Duprin 2670 GUARD-X Exit Alarm Device offers secure and code-compliant protection for secondary emergency exits. With a large stainless steel deadbolt and resilient latch case, it deters theft and unauthorized use in restaurants and retail establishments, providing peace of mind and safeguarding against potential losses.
GUARD-X Features and benefits
- UL listed for panic exit hardware (UL305)
- Tested in accordance to ANSI A156.3 Grade 1 panic hardware (250,000 cycles)
- Quick installation with an easy-to-use adhesive back template
- Non-handed design allows installer to mount for either hand by just removing and reversing the “Emergency Exit - Alarm Will Sound” sign built into the device
- Three finishes available: SP28, 313, 315
- Heavy duty construction with stainless steel deadbolt with cast aluminum latch case
- Only authorized person with a key can re-latch or reset the alarm after unauthorized exit
- 100-decibel alarm
- Armed and disarmed by key
- Alarm is powered by standard 9V battery or hardwired using optional PT790 power supply
Product Specs
| Manufacturer | Von Duprin |
| SKU | 2670 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Base Material | Aluminum |
| UL Listing Type | ANSI A156.3 Grade 1, UL Listed |
| Limited Warranty | 3 Years |
Technical Specifications
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Impacted |
| Device Length | 32-1/2" |
| Hand | Non-Handed |
| Includes Cylinder | Yes |
| Cylinder Type | Rim (Von Duprin 3216/Schlage 20-022) |
| Keyway | Schlage "C" |
| Door Width | 36" - 48" |
| Fire Rated | No |
| Product Type | Exit Device Parts |
| Touchbar height to finished floor | 40" (1016mm) at center |
| Door width range | 36" to 48" (914mm to 1219mm) |
| Touchbar projection Neutral Depressed |
4 1⁄8" (103mm) |
| Minimum stile requirement Single door Double door |
5 7⁄8" |
