Von Duprin 9847EO 3 Concealed Vertical Rod Exit Device, Exit Only, 36" bar

  • SKU: 9847EO3626

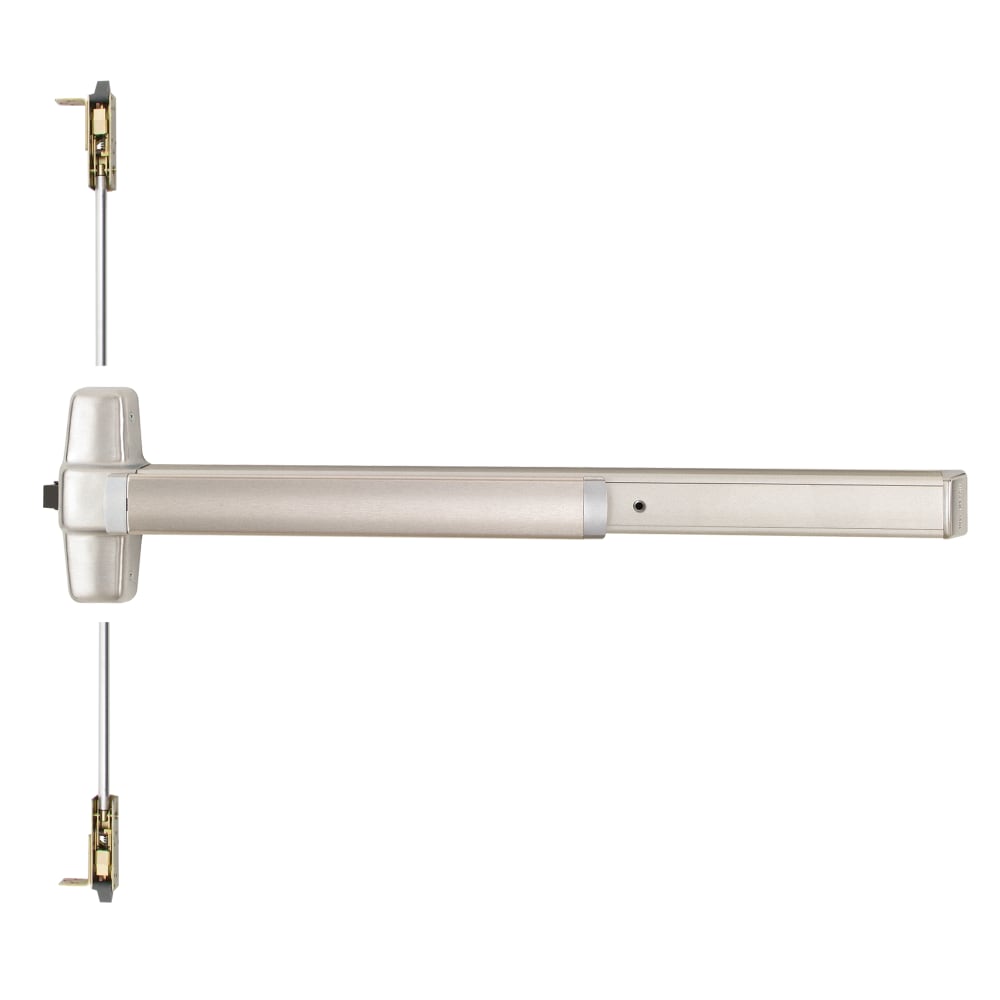

Von Duprin 9847EO 3 630
Von Duprin 9847EO 3 630
Von Duprin 9847EO 3 313
Von Duprin 9847EO 3 626
Von Duprin 9847EO 3 628
Zoomed view
All VON DUPRIN Products

Von Duprin 9847EO 3 Concealed Vertical Rod Exit Device, Exit Only, 36" bar

  • SKU: 9847EO3626
  • ✓
    Available (4‑5 Weeks)
    4-5 Weeks Lead Time
Your Price
$3,471.00/ea
0% Net 30 Days: Apply Now
Finish: US26D-626 Satin Chrome

Von Duprin 9847EO 3 Grade 1 Concealed Vertical Rod Exit Device, Wide Stile Pushpad, 36" Device, 80" to 100" Door Height, Exit Only, Hex Key Dogging, Field Reversible

The 9847 device has a smooth mechanism case.

The 9847 Series is for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.
  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
  • Device lengths: 2' 2' (610 mm) Door size 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm) Center case dimensions 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking top & bottom bolt, 5 /8" (16mm) throw
  • Door undercut: 1 /4" (7mm) recommended
  • Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
  • Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
Manufacturer Von Duprin
SKU 9847EO 3
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL 305
ANSI Number A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 3 Years
Fire Rated No
Burglar Rated No
ADA Compliance No
Physical Appearance Wide Stile Pushpad
Device Type Concealed Vertical Rod
Mechanical Function Exit Only, Accepts Various Trim
Device Length 36"
Hand Field Reversible
Dogging Options Hex Key Dogging
Top Strike 338
Strike Bottom 385A
Includes Trim No
Trim Type Less trim
Includes Cylinder(s) No
Cylinder Type Non-Keyed
Minimum Stile Size 3-11/16"
Door Material Hollow Metal
Door Width 28" to 36"
Door Height 80" to 100"
Door Thickness 1-3/4" - 2-1/4"
Fire Rated No
Reversible Yes
Product Type Concealed Vertical Rod Exit Devices
