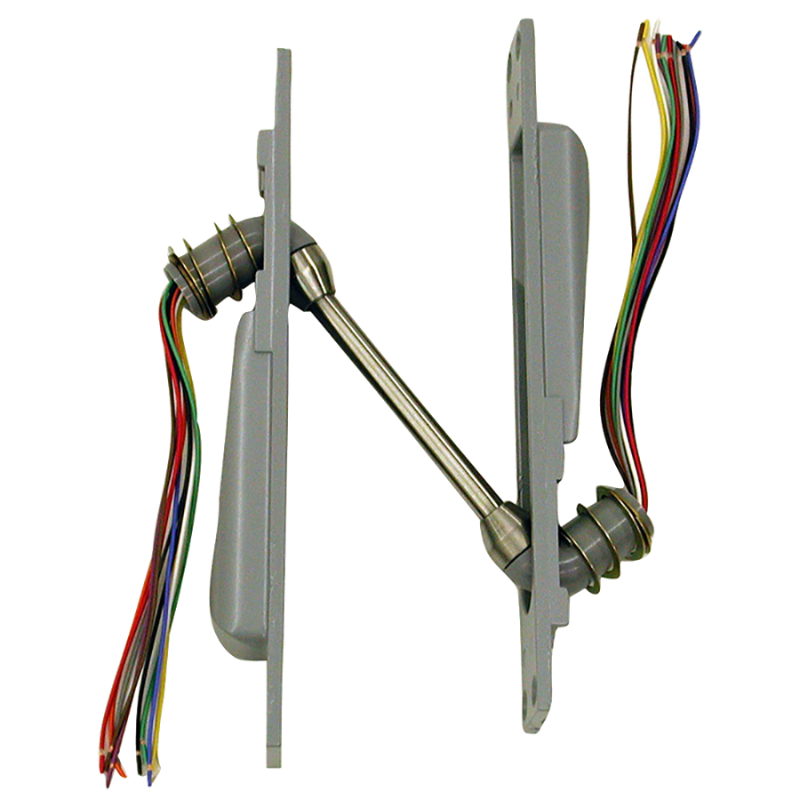

Von Duprin EPT10SP28 Electric Power Transfer, Ten 24 Guage Wires, Aluminum Painted

The Von Duprin EPT10SP28 Electric Power Transfer provides a reliable, concealed pathway for routing electrical wiring between the door frame and the door edge. Designed for openings that use electrified exit devices, electric locks, or other door-mounted electrified hardware, this unit carries ten 24-gauge wires while protecting them from the stress of repeated door movement. The EPT mounts into the door and frame, keeping wires hidden and secure for a clean, professional installation. Finished in an aluminum painted (28) coating, it pairs well with a wide range of commercial hardware. Built to Von Duprin standards, the EPT10SP28 is a dependable choice for access control and security applications.

Features

• Transfers power and signal wiring from the frame to the door for electrified hardware.
• Carries ten 24-gauge wires to support multiple electrified functions.
• Concealed design protects wiring and improves opening aesthetics.
• Aluminum painted (28) finish for a clean, coordinated appearance.
• Engineered to withstand continuous door movement without damaging wiring.

Functional Details

The Electric Power Transfer bridges the gap between the door frame and the door, allowing wires to pass safely as the door opens and closes. The flexible housing shields the conductors from pinching, bending fatigue, and wear over the life of the opening.

• Transfers electrical current from the frame to the door.
• Concealed when the door is closed.
• Available with 8, 10, or 16 wires.
• 24 AWG wires.
