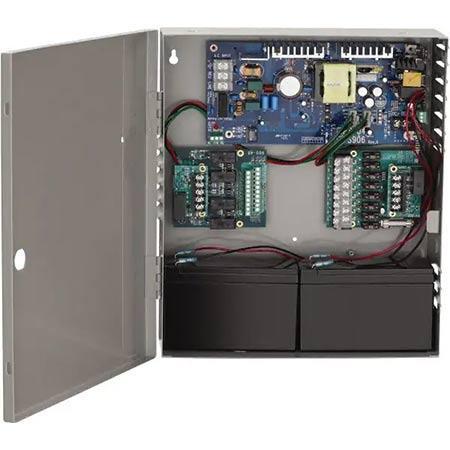

Von Duprin PS904 Base Power Supply (4A @ 12/24 VDC Field Selectable)

• The PS900 Series is a consolidated line of power supplies and accessories that offer enhanced flexibility and functionality specific to the changing needs of the access control market.
• The PS900 Series can be used in a variety of applications to convert high-voltage AC power into the regulated low-voltage DC outputs required by most access control devices.
• The PS900 Series protects devices downstream by providing Class 21, filtered and regulated power.
• The full line is UL294 certified.

• Constant output rating at both 12VDC or 24VDC provides superior performance; includes field selectable jumper
• Flat mounting of option boards provides easier access to terminal blocks for the connection of electrified devices
• High voltage protective cover
• Battery backup board auto-selects voltage
• Fire alarm relay can be configured to provide either switched or un-switched outputs from a power supply
• PS914 designed with a high inrush current for powering electrified panic devices
• Universal 120-240 VAC input
• Low voltage DC, regulated and filtered
• Electronic power limiting foldback circuit for AC current overload protection
• Fused primary input
• AC status monitor- isolated SPDT contacts
• AC input and DC output LED status indicators
• Cover-mounted AC input indication
• Hinged cover with lock-down screws
• Optional key lock

• Schlage electromagnetic locks
• Schlage AD Series hardwired locks
• Schlage electrified mechanical locks
• Von Duprin electrified strikes
• Von Duprin exit devices
• Many other brands

Von Durpin PS904 Base Power Supply (4A @ 12/24 VDC field selectable) (approx. weight 11 lbs) PS904 is able to accept a total of 2 optional distribution boards.

• Grade: 1
• Unit of Measure: Each
• Package Qty: 1
• Purpose: General
• Output Volts: 12/24 VDC
• Output Amps: 4 AMPS
• Fire Alarm Relay: No
• Modular Options: No
