Von Duprin RX350 Dummy Push Pad with Request to Exit Switch

  • SKU: RX3503628
Von Duprin RX350 Dummy Push Pad
Von Duprin RX350 Dummy Push Pad
All VON DUPRIN Products

Von Duprin RX350 Dummy Push Pad with Request to Exit Switch

  • SKU: RX3503628
$1,311.00/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US28-628 Satin Aluminum
Length: 3' - (30" - 36" Doors)

Von Duprin RX350 (35A Series) Grade 1Dummy Push Pad with Request to Exit Switch and Smooth Surface Case

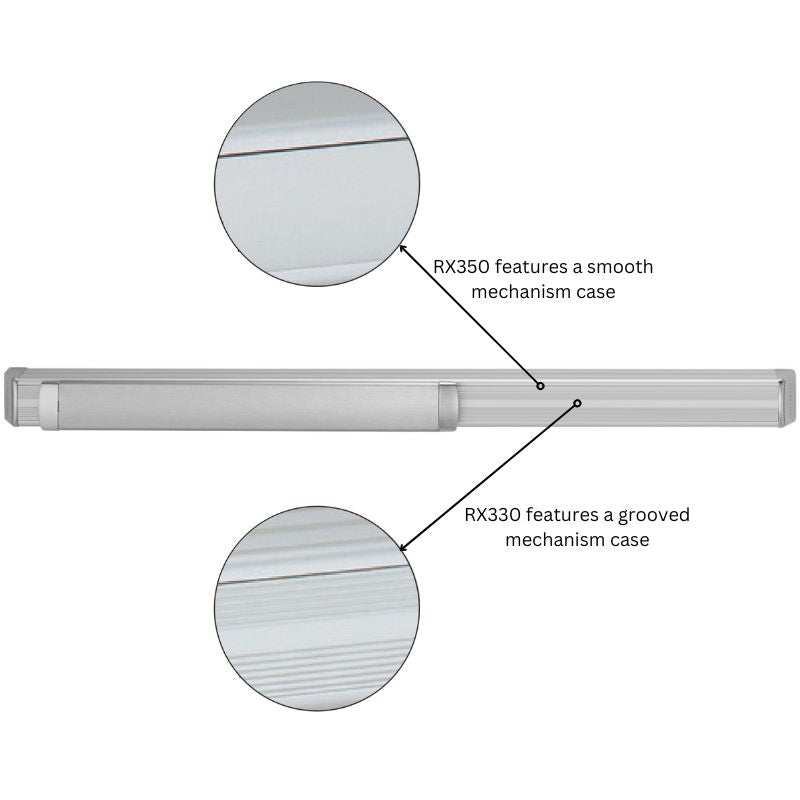

The RX350 bar features an active push pad with a monitoring switch or “request to exit” switch, used to inhibit alarms for authorized exiting. The 350 smooth outer case are designed as companion units for series 33A, 35A, 98, and 99 exit devices.

The internal SPDT switch should not be used to control a load, but as a signaling switch.

Manufacturer Von Duprin
SKU RX350
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
ANSI Number ANSI A156.3 - 2014
BAA Qualified Yes
Limited Warranty 1 Year
Fire Rated No
ADA Compliance No

Physical Appearance Narrow Stile Pushpad
Device Type Rim
Device Length 36" or 48"
Minimum Door Openings 3' (914mm) - 2'6" (762mm) to 3' (914mm)
4' (1219mm) - 3'1" (940mm) to 4' (1219mm)
Hand Non-Handed
Switch Type Request to Exit
Fire Rated No
SPDT Switch 0.5 ampere @ 24VDC
Product Type Dummy Exit Devices

Product Cut Sheet

Panic Handing Chart
