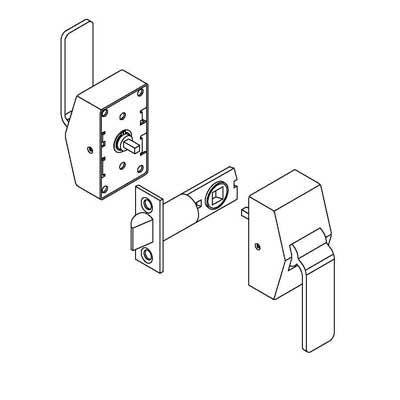

ABH 605A-US10B Cylindrical Hospital Push & Pull Latches, Passage Function, 5 Inch Backset, 4-7/8 Inch ASA Strike, For 1-3/4 Tk Door, Non Handed, 613 Oil Rubbed Bronze Finish

• Cylindrical latch application - passage function
• 1-3/4" standard door thickness (specify if different)
• Meets ADA requirements

Trim is mounted using four thru-bolts for maximum stability One continuous spring provides a smoother operation and an extended life for the unit

Non-handed for installation and stocking ease Trim can be mounted vertically or horizontally (with handles pointing toward the hinge edge of the door)

Handles can be mounted up or down by simply rotating the trim 180 °

UL Listed in the U.S.A. and Canada

for use on door fire rated 90 minutes or less, up to 4'0" x 8'0" 1/2" Latch Bolt Throw

Average weight per unit = 5 lbs

Patent# 6,196,599 & Additional Patent Pending
