Description

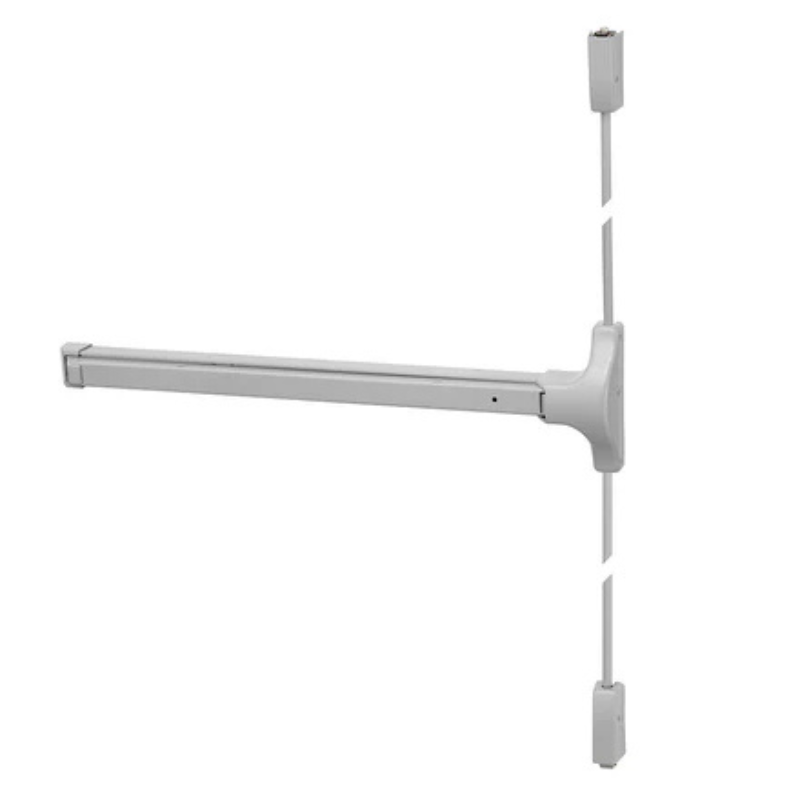

Accentra (Formerly Yale) 2110F Fire Rated Surface Vertical Rod Exit Device, Exit Only, Wide Stile Pushpad, 84 Inch Door Height, Less Dogging, Grade 1
The Accentra 2110F represents a premium fire-rated exit solution engineered for demanding commercial applications. This surface-mounted vertical rod device delivers Grade 1 durability and compliance, featuring a wide stile pushpad mechanism designed for high-traffic environments. Built for 84-inch door heights, the exit-only configuration ensures secure egress control without reverse operation. The absence of dogging functionality maintains strict access protocols. Ideal for facilities requiring robust fire safety certification and reliable emergency exit performance.
Features
- Designed for wide stile doors
- Positive action linkage on a deadlocking top pullman bolt
- Handed, specify hand
- Simultaneous direct pull bottom deadbolt
- When unlatched, device keeps both bolts retracted until
door is shut
Applications
- Pair of doors
- Double egress
- Metal, wood or composite door materials
Product Specs
| Manufacturer | Accentra |
| SKU | 2110F |
| Unit of Measure | Each |
| Installation | Commercial |
Technical Specs
| Sizes |
36" - For door widths 30" - 36" 42" - For door widths 36-1/2" - 42" 48" - For door widths 42" - 48" |
| Door Thickness | 1-3/4" (44mm) standard |
| Door Height | 84" |
| Reversible | No |
| Minimum Stile Width | 4-1/2" (114mm) |
| Projection | 2-1/2" (64mm) active, 1-3/4" (44mm) depressed |
| Latchbolt | Top: 3/4" (19mm) throw, pullman-type with automatic deadlatching. Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing |
| Vertical Rods | 1/2" (13mm) O.D. tubular brass, bronze or stainless steel with rod guides |
| Strike(Optional Buy Separately) | Top: Roller type 791. Bottom: Flush mounted 790. 794 floor strike optional (threshold openings). |
| Fasteners | Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware. |
| Trims |
210F series utility trim, 440F series rose trim, 580F series rose trim with escutcheon plate, 620F series escutcheon trim, |
| Dogging |
Less Dogging |
| Warranty |
3-year limited |
| Fire Rated |
Yes |
Certifications
| ANSI/BHMA: | Certified A156.3 Type 2, Grade 1 |
