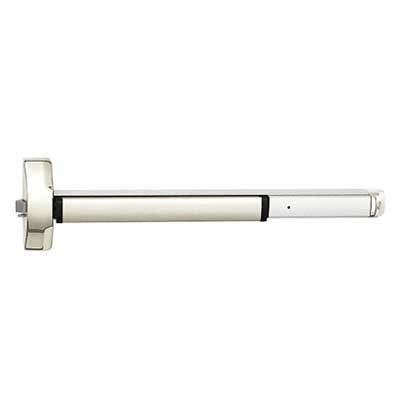

Accentra (Yale) 6100-48-630 Rim Device, Pullman Latch Exit Bar, Hex Key Dogging, 48" Bar, Exit Only, Less Trim, Grade 1, Satin Stainless Steel Finish

  • SKU: 610048630
Accentra6100-48-630 Exit Only Panic Bar, Exit Device
Accentra6100-48-630 Exit Only Panic Bar, Exit Device
All Accentra Products

Accentra (Yale) 6100-48-630 Rim Device, Pullman Latch Exit Bar, Hex Key Dogging, 48" Bar, Exit Only, Less Trim, Grade 1, Satin Stainless Steel Finish

  • SKU: 610048630
$963.00/ea
In Stock
In Stock

Accentra (Formerly Yale) 6100-48-630 Rim Device, Pullman Latch Exit Bar, Wide Stile Pushpad, Hex Key Dogging, 42" - 48" Door Opening Width, Exit Only, Less Trim, Grade 1, Satin Stainless Steel Finish, Non-Handed

Accentra 6100-48-630 Exit Only Panic Bar, Exit Device 48" Bar Satin Stainless Steel Finish The Accentra 6100-48" Rim Exit Device Is a Commercial Grade One Panic Bar. The 6100 Exit Device Is Designed for wide stile doors Has a 3/4" throw deadlocking stainless steel Pullman latch bolt And Is Non-Handed. ANSI/BHMA A156.3 Grade 1 certified. Accentra 6100 Has a Hex Key Dogging For Use Non-Rated Doors.



Vendor Assa Abloy
Manufacturer Accentra
SKU 6100 48 630
Grade Grade 1
Installation Commercial
Unit of Measure Each
ANSI Number ANSI/BHMA A156.3 Grade 1
Limited Warranty 10 Years
Fire Rated No
Finish 630/US32D
Finish Description Satin Stainless Steel
Finish Family Matte Silver



Physical Appearance Wide Stile Pushpad
Device Type Rim
Device Length 48 In.
Includes Trim No
Minimum Stile Size 4-1/2 In.
Door Material Metal or Wood
Door Width 42 In. - 48 In.
Door Thickness 1-3/4 In.
Fire Rated No
Reversible Yes
Product Type Rim Exit Devices



Product Cut Sheet

Panic Handing Chart
