Technical Specifications
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Device Length | 36" |
| Includes Trim | No |
| Minimum Stile Size | 4-1/2 In. |
| Door Material | Metal or Wood |
| Door Width | 30In. - 36In. |
| Door Thickness | 1-3/4 In. |
| Fire Rated | No |
| Reversible | Yes |
| Alarmed | Yes |

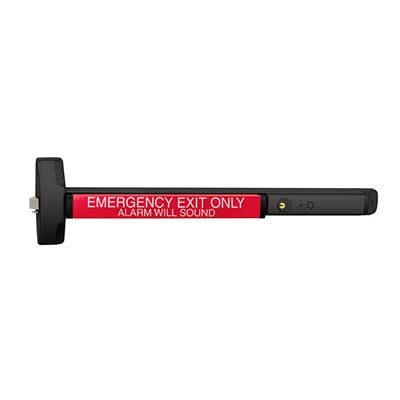

Accentra (Formerly Yale) 6100-A-ALR-36-BSP Rim Exit Device, Exit Only, Wide Stile Pullman Latch, With Alarm Kit with Red Screenprinted Touchpad, 30-36" Dr Width, Less Cylinder, Black Suede Powder Coat
More Information on the Alarm Functionality
36" Device Comes With Alarm Kit with red screen printed touchpad
-Alarm Kit A-ALR” Activation: The alarm is armed by turning the key clockwise. A low audible chirp indicates the alarm has been activated.
-The alarm will sound when the exit device push pad is depressed. Factory preset for standard alarm mode which automatically resets after 5 minutes.
-Continuous Alarm Mode: The alarm sounds continuous when the exit device push pad is depressed. The alarm must be manually reset by a key switch. (This feature is selected by a switch on the circuit board.)
-Low Battery Warning: Audible chirp. Nuisance Alarm: Factory preset for instant alarm. Selectable feature for the alarm to sound when the push pad is depressed for more than 2 seconds. (This feature is selected by a switch on the circuit board.)
-Arming Delay/Authorized Egress: 10-second delay (after arming) permitting egress (by turning the key clockwise).
