Description

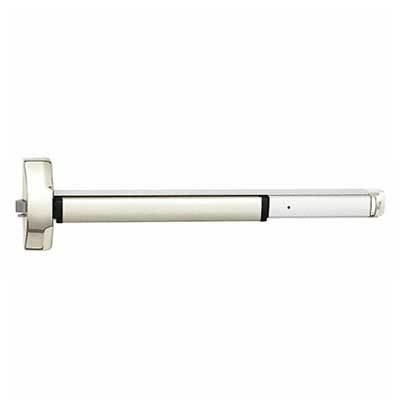

Accentra (Formerly Yale) 6100-F-36-630 Fire Rated Rim Device, Pullman Latch Exit Bar, Wide Stile Pushpad, 30"- 36" Door Opening Width, Exit Only, Less Trim, Grade 1, Satin Stainless Steel Finish, Non-Handed
The Accentra (Formerly Yale) 6100-F 36" 630 Fire Rated Exit Device, Exit Only in Satin Stainless Steel Finish. Accentra 6100-F Is a Fire Rated Rim Exit Device, Commercial Grade One Panic Bar. The 6100 Exit Device Is Designed for wide stile doors and Has a 3/4" throw deadlocking stainless steel Pullman latch bolt And Is Non-Handed. ANSI/BHMA A156.3 Grade 1 certified.
FEATURES
- Designed for wide stile doors
- 3/4" throw deadlocking stainless steel Pullman latch bolt
- Available in double cylinder function (must specify handing)
- Non-handed for easy installation
APPLICATIONS
- Single swing doors
- Pairs of doors with removable mullions
- Wide stile aluminum, metal, wood, or composite door materials
Technical Specifications
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Device Length | 36 In. |
| Mechanical Options | Fire Rated Device |
| Includes Trim | No |
| Minimum Stile Size | 4-1/2 In. |
| Door Material | Metal or Wood |
| Door Width | 30 In. - 36 In. |
| Door Thickness | 1-3/4 In. |
| Fire Rated | Yes |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
Product Specifications
| Vendor | Assa Abloy |
| Manufacturer | Accentra |
| SKU | 6100F 36 630 |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| ANSI Number | ANSI/BHMA A156.3 Grade 1 |
| Limited Warranty | 10 Years |
| Fire Rated | Yes {Variable} |
| Finish | 630/US32D |
| Finish Description | Satin Stainless Steel |
Document Center
Handing Chart
