Accentra (Yale) 6100-F-48-613E Fire Rated Rim Device, Pullman Latch Exit Bar, Wide Stile Pushpad, 48" Bar, Exit Only, Less Trim, Grade 1, Dark Oxidized Bronze

  • SKU: 6100F48613E

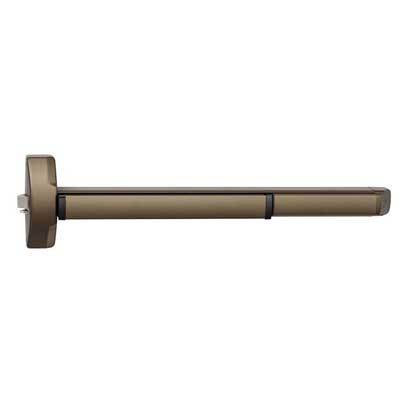

Accentra6100-F 48" 613E Fire Rated Exit Device Exit Only
Accentra6100-F 48" 613E Fire Rated Exit Device Exit Only
All Accentra Products

Accentra (Yale) 6100-F-48-613E Fire Rated Rim Device, Pullman Latch Exit Bar, Wide Stile Pushpad, 48" Bar, Exit Only, Less Trim, Grade 1, Dark Oxidized Bronze

  • SKU: 6100F48613E
$1,158.00/ea
Available (3‑4 Weeks)
3-4 Weeks Lead Time

Accentra (Formerly Yale) 6100-F-48-613E Fire Rated Rim Device, Pullman Latch Exit Bar, Wide Stile Pushpad, 42"-48" Door Opening Width, Exit Only, Less Trim, Grade 1, Dark Oxidized Bronze Finish, Non-Handed

The Accentra 6100-F 48" 613E Fire Rated Exit Device Exit Only in Dark Oxidized Satin Bronze Finish 48" Bar. Accentra 6100F Is a Fire Rated Rim Exit Device, Commercial Grade One Panic Bar. The 6100 Exit Device Is Designed for wide stile doors and Has a 3/4" throw deadlocking stainless steel Pullman latch bolt and Is Non-Handed. ANSI/BHMA A156.3 Grade 1 certified.

FEATURES

  • Designed for wide stile doors
  • 3/4" throw deadlocking stainless steel Pullman latch bolt
  • Available in double cylinder function (must specify handing)
  • Non-handed for easy installation

APPLICATIONS

  • Single swing doors
  • Pairs of doors with removable mullions
  • Wide-stile aluminum, metal, wood, or composite door materials


Vendor Assa Abloy
Manufacturer Accentra
SKU 6100F 48 613E
Grade Grade 1
Installation Commercial
Unit of Measure Each
ANSI Number ANSI/BHMA A156.3 Grade 1
Limited Warranty 10 Years
Fire Rated Yes
Finish 613E
Finish Description Dark Oxidized Bronze



Physical Appearance Wide Stile Pushpad
Device Type Rim
Device Length 48 In.
Mechanical Options Fire Rated Device
Includes Trim No
Minimum Stile Size 4-1/2 In.
Door Material Metal or Wood
Door Width 42 In. - 48 In.
Door Thickness 1-3/4 In.
Fire Rated Yes
Reversible Yes
Product Type Rim Exit Devices











Product Cut Sheet

Panic Handing Chart
