Description

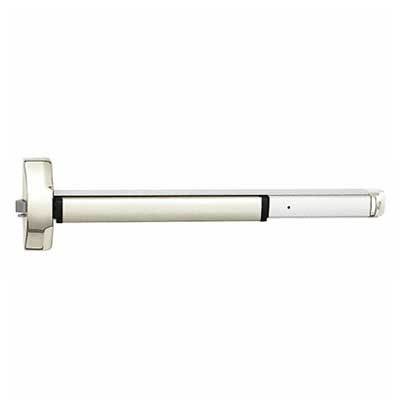

Accentra (Formerly Yale) 6100-F-48-630 Fire Rated Rim Device, Pullman Latch Exit Bar, Wide Stile Pushpad, 42" - 48" Door Opening Width, Exit Only, Less Trim, Grade 1, Satin Stainless Steel Finish, Non-Handed
The Accentra 6100-F 48" 630 Fire Rated Exit Device, Exit Only in Satin Stainless Steel Finish. Accentra 6100-F-48" Bar Is a Fire Rated Rim Exit Device, a Commercial Grade One Panic Bar. The 6100 Exit Device Is Designed for wide stile doors Has a 3/4" throw deadlocking stainless steel Pullman latch bolt And Is Non-Handed. ANSI/BHMA A156.3 Grade 1 certified.
FEATURES
- Designed for wide stile doors
- 3/4" throw deadlocking stainless steel Pullman latch bolt
- Available in double cylinder function (must specify handing)
- Non-handed for easy installation
APPLICATIONS
- Single swing doors
- Pairs of doors with removable mullions
- Wide-stile aluminium, metal, wood, or composite door materials
Product Specifications
| Vendor | Assa Abloy |
| Manufacturer | Accentra |
| SKU | 6100F 48 630 |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| ANSI Number | ANSI/BHMA A156.3 Grade 1 |
| Limited Warranty | 10 Years |
|
Fire Rated |
Yes |
| Finish | 630/US32D |
| Finish Description | US32D/630 Satin Stainless Steel |
Technical Specifications
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Device Length | 48 In. |
| Mechanical Options | Fire Rated Device |
| Includes Trim | No |
| Minimum Stile Size | 4-1/2 In. |
| Door Material | Metal or Wood |
| Door Width | 42 In. - 48 In. |
| Door Thickness | 1-3/4 In. |
| Fire Rated | Yes |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
