Description

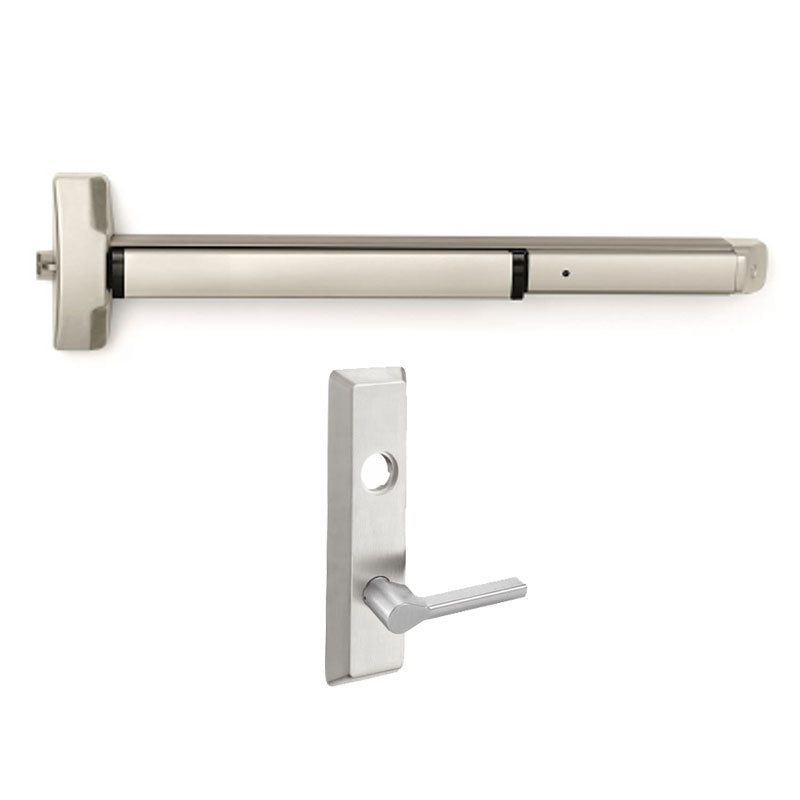

Accentra 6100F-36-TB627-630 is a 36" Fire Rated Rim Exit Device with a TB627F TB Lever Escutcheon in Nightlatch Function in US32D Satin Stainless Steel Finish. The Accentra 6100F-36-TB627-63 is handed and has No Dogging. The 36" bar works for doors 33"-36" wide.
FEATURES
- Designed for wide stile doors
- 3/4" throw deadlocking stainless steel Pullman latch bolt
- Available in double cylinder function (must specify handing)
- Non-handed for easy installation
APPLICATIONS
- Single swing doors
- Pairs of doors with removable mullions
- Wide stile aluminum, metal, wood, or composite door materials
Product Specifications
| Vendor | Assa Abloy |
| Manufacturer | Accentra |
| SKU | 6100F 36 TB627 630 LC |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| ANSI Number | ANSI/BHMA A156.3 Grade 1 |
| Limited Warranty | 10 Years |
| Fire Rated | Yes {Variable} |
| Finish | 630/US32D |
| Finish Description | Satin Stainless Steel |
Technical Specifications
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Device Length | 36" |
| Mechanical Options | Fire Rated Device |
| Includes Trim | No |
| Minimum Stile Size | 4 1/2" |
| Door Material | Metal or Wood |
| Door Width | 30" - 36" |
| Door Thickness | 1 3/4" |
| Fire Rated | Yes |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
Document Center
Handing Chart
