Description

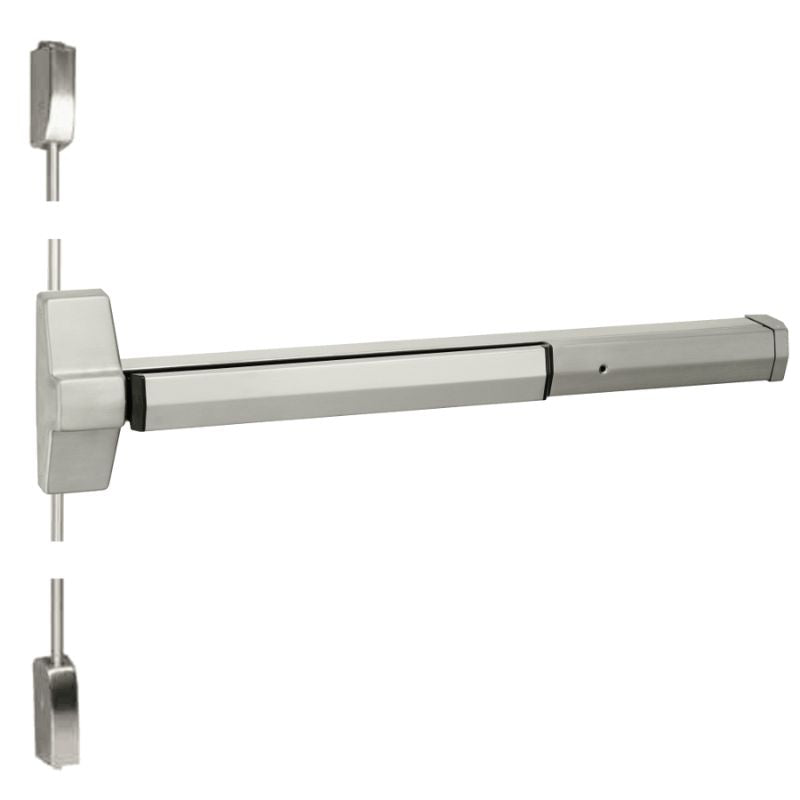

Accentra (Formerly Yale) 7110-36-630 Surface Vertical Rod Exit Device, Exit Only, 30-36 In Dr Width, 84" Door Ht, Hex Key Dogging, Grade 1, US32D Satin Stainless Steel Finish
Accentra's (formerly known as Yale) 7110-36-630 Surface Vertical Rod Exit Device is designed for exit only situations, featuring a satin stainless steel finish and hex key dogging for easy use. With a 30-36 inch door width and 84 inch door height, this Grade 1 device is a reliable choice for any building.
Appliance Trim: 620F series escutcheon trim, 630F series pull/thumbpiece trim, 680F series offset pull trim, 540F series rose trim.
Features:
• Designed for wide stile and flush doors
• Handed. Specify hand (field reversible)
• Bottom deadbolt for secure latching
• Fully adjustable roller strike
Applications:
• Pairs of doors
• Double egress
• Metal, wood or composite door materials
Product Specs
Manufacturer | Accentra (Formerly Yale) |
SKU | 7110-36-630 |
Grade | Grade 1 |
Unit of Measure | Each |
Installation | Commercial |
Limited Warranty | 5 Years |
ANSI | Certified A156.3 Type 2, Grade 1 |
Finish | 630/US32D Satin Stainless Steel |
Finish Family | Matte Silver |
Technical Specs
Physical Appearance | Wide Stile Pushpad |
Device Type | Surface Vertical Rod |
Device Length | 36" |
Includes Trim | No |
Minimum Stile Size | 4-1/2" |
Door Material | Metal, Wood or Composite |
Door Width | 30" - 36" |
Door Height | 7 Ft. |
Door Thickness | 1-3/4 In. |
Fire Rated | No |
Dogging Options | Hex Key Dogging |
Reversible | Yes |
Product Type | Surface Vertical Rod Exit Devices |
