Description

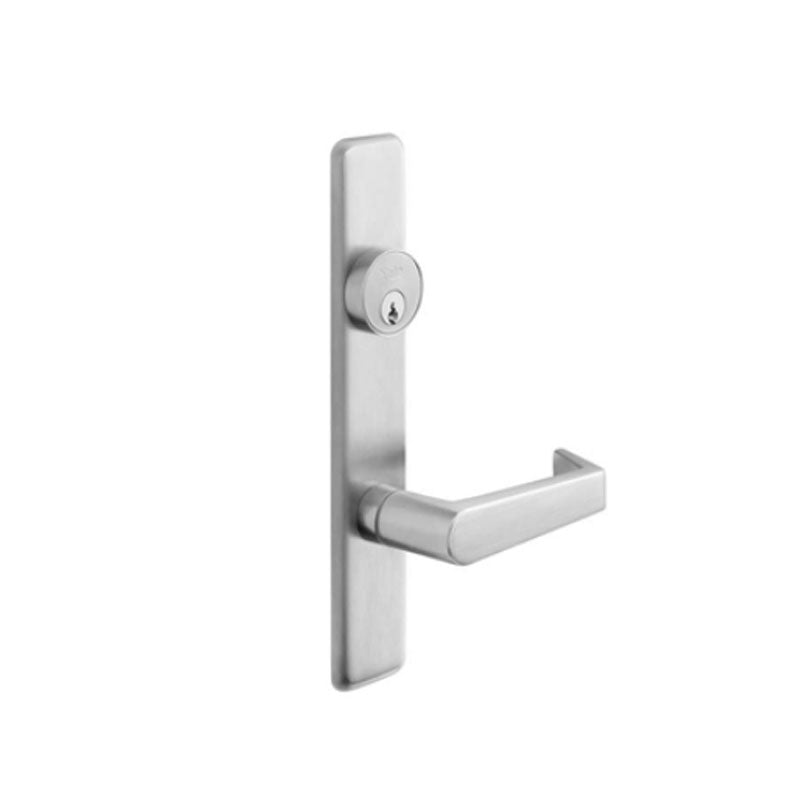

Accentra (Formerly Yale) AU506F-2109-630 Escutcheon Cylinder Control Lever - Satin Stainless Steel Finish (2109 - Standard Cylinder - Schlage )
The Accentra AU506F Escutcheon Cylinder Control lever Exit Trim comes with a 2109 Schlage "C" 6-Pin core. Accentra AU506F has an Augusta Lever style and has overall dimensions of 1-5/8" x 9-1/2" x 1/4". The Accentra AU506F comes in a 630 Satin Stainless Steel finish.
- Available for Yele 6200, 6210, 6220, and 6250 Exit Device
500F series escutcheon Narrow Stile trim
- Certified ANSI/BHMA A156.3, Grade 1.
- Trim through-bolts to exit device for strength.
- 1-3/4" (44mm) door standard. For doors through 2-1/4"(57mm) or shim-mounted devices, specify on order.
- Dimensions:1-5/8" x 9-1/2" x 1/4" (41mm x 241mm x 6mm)
- Cylinders not included. See page 39-41 for cylinder options.
- Available with AR, AU, CR, JN, MO, PB, PN, VI, HA lever designs. See page 17-18. - Finishes: 605, 606, 613E, 629, 630
- Available with Reflections® lever designs. See page 18.- Finishes: 605, 606, 613E, 629, 630
- Trim ordering example: AU506F x 626 xRHR.
- 1-year limited warranty.
Product Specs
Manufacturer | Accentra |
SKU | AU506F 630 |
Installation | Commercial |
Origin | — |
Unit of Measure | Each |
Technical Specs
Trim Type | Classroom/Storeroom Lever |
Trim Design | AU - Augusta Lever |
Includes Cylinder(s) | Yes, Schlage C |
Cylinder Type | Rim |
Fire Rated | No |
Product Type | Exit Device Trim |
Document Center
Handing Chart
