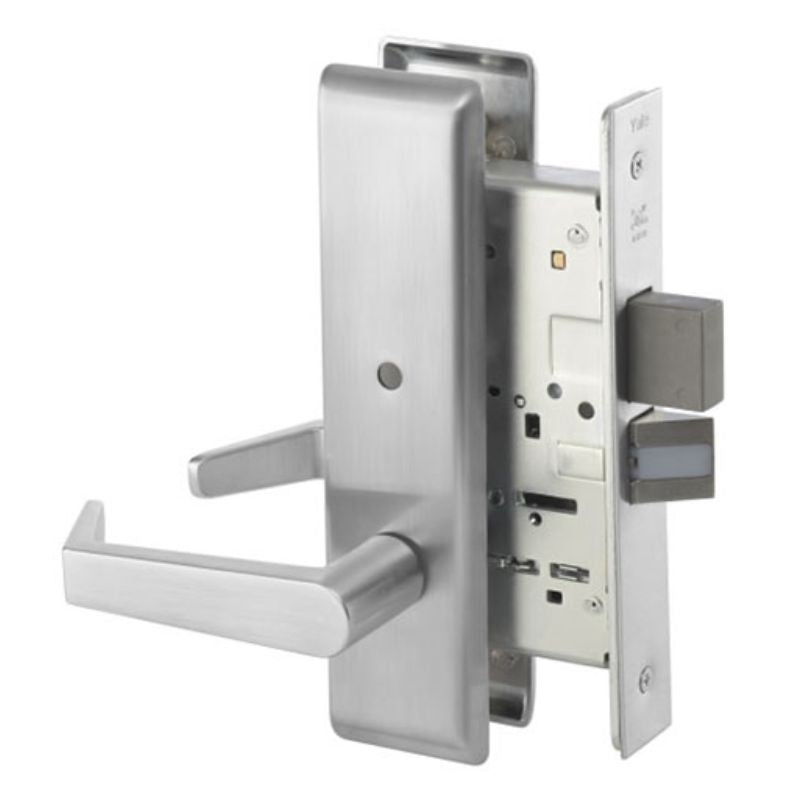

Accentra (Formerly Yale) AUCN8802FL-626 Privacy With DeadBolt Mortise Lock, Augusta Lever, CN Escutcheon, Grade 1, Field Reversible, Satin Chrome Plated Finish

Accentra AUCN8802FL-626 Privacy with Deadbolt Mortise Lock features a Grade 1 Augusta Lever and CN Escutcheon, with a satin chrome plated finish. This lock is designed to be field reversible for added convenience.

• Latchbolt retracted by knob/lever either side

• Deadbolt operated by thumbturn inside

• When the deadbolt is projected, outside knob/lever is automatically locked

• Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever.

• In emergency, deadbolt may be unlocked from outside by E203 emergency key, supplied

Yale 8800 Series Mortise Locks

Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.

• ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
• UL-cUL: UL/cUL fire rated up to 3 hours
• Windstorm: Certified (refer to local codes)
• Mechanism: Stainless steel
• Backset: 2-3/4"
• Latchbolt: 3/4" stainless steel throw
• Door Thickness: 1-3/4" standard, to 3-1/4" thick doors to order
• Fronts: Bevel front, free-floating to adjust from flat to standard bevel of 1/8" in 2"
• Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
• Reversibility: Field reversible handing
• Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible
• Finishes: Available in 17 finishes
• Warranty: 10 year mechanical
