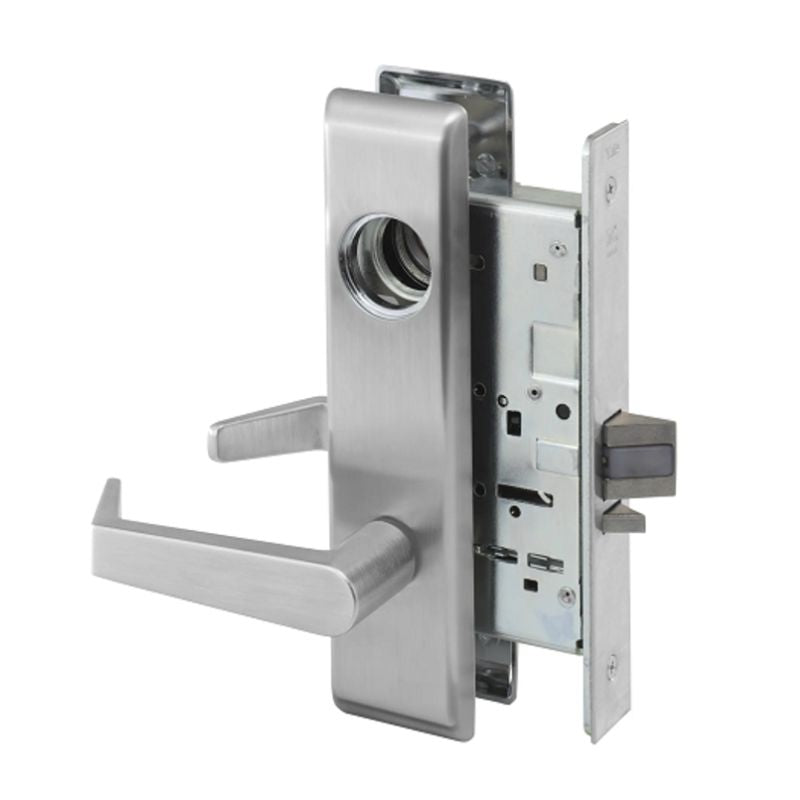

Accentra (Formerly Yale) AUCN8808FL-626-LC Classroom Mortise Lock, Augusta Lever, CN Escutcheon, Less Cylinder, Grade 1, Field Reversible, Satin Chrome Plated Finish

The Accentra AUCN8808FL-626-LC Classroom Mortise Lock, previously known as Yale, features an Augusta Lever, CN Escutcheon, and Grade 1 rating. It is field reversible and has a satin chrome plated finish, and comes without the cylinder.

• For classroom, office, or utility room doors

• Latchbolt retracted by knob/lever either side, except when outside knob/lever is locked by key

• Inside knob/lever always active

• Latchbolt can be retracted by key when outside knob/lever is locked

• Operating inside knob/lever retracts latchbolt, but outside knob/lever remains locked

• Deadlocking latchbolt

Yale 8800 Series Mortise Locks

Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.

• ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
• UL-cUL: UL/cUL fire rated up to 3 hours
• Windstorm: Certified (refer to local codes)
• Mechanism: Stainless steel
• Backset: 2-3/4"
• Latchbolt: 3/4" stainless steel throw
• Door Thickness: 1-3/4" standard, to 3-1/4" thick doors to order
• Fronts: Bevel front, free-floating to adjust from flat to standard bevel of 1/8" in 2"
• Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
• Reversibility: Field reversible handing
• Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible
• Finishes: Available in 17 finishes
• Warranty: 10 year mechanical
