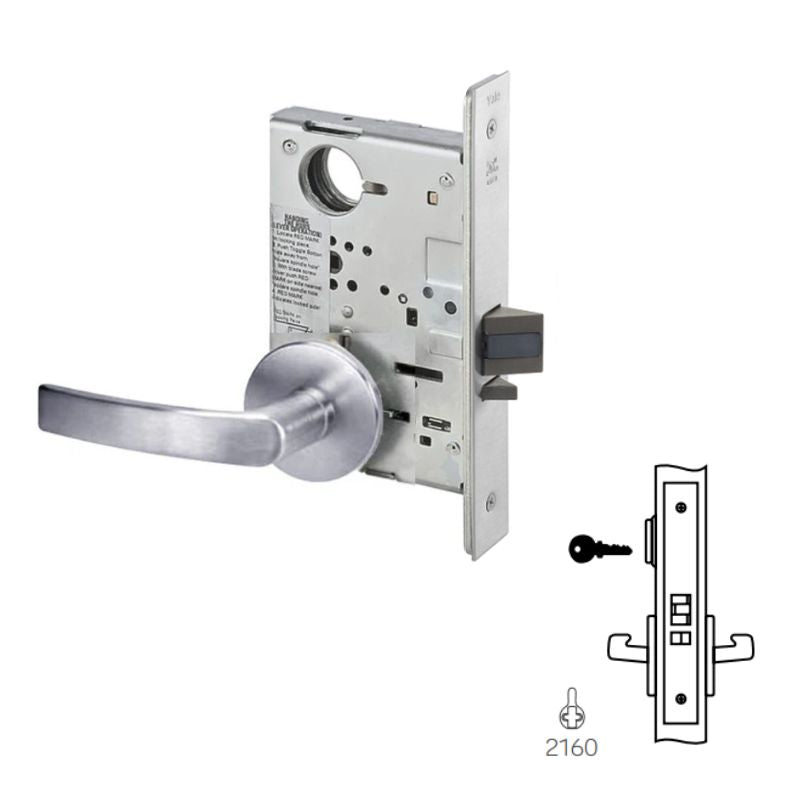

Accentra (Formerly Yale) MOR8891FL-24VDC-626-LC Electric Mortise Lock, Outside Fail Secure Single Cylinder,  Monroe Lever, CO Rose, Less Cylinder, Grade 1, Field Reversible, US26D Satin Chrome Plated Finish

Accentra (Formerly Yale) MOR8891FL-24VDC-626-LC Electric Mortise Lock, Outside Fail Secure Single Cylinder, with the Monroe Lever and CO Rose, is a grade 1 product that is field reversible and finished with a US26D satin chrome plating. This high-quality lock does not include a cylinder, making it versatile and easily adaptable for various security needs.

• Power off – outside lever locked

• Power on – outside lever active

• Auxiliary latch deadlocks latchbolt

• Inside lever always free

• Mechanical key override by outside when locked

Electrical Specifications

• Fail Safe/Fail Secure

• Voltage: 12VDC or 24VDC Regulated

• Current Draw:
   .25A at 24VDC
   .5A at 12VDC

• Operating Temp.:
   Max. 151°F (66°C)
   Min. -31°F (-35°C)

• All monitoring switches rated at:
  2 Amp @ 30 VDC
  3 Amp @ 125 VAC

Yale 8800 Series Electric Mortise Locks

Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.
